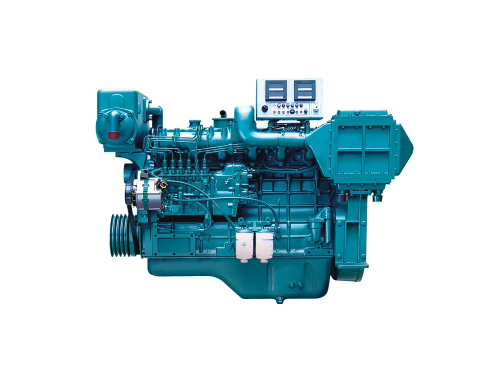

YUCHAI Marine Engine YC6108CA1 and spare parts

YUCHAI Marine Engine YC6108CA1 and spare parts
Product description: YUCHAI Marine Engine YC6108CA1 and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC6108CA1 and spare parts

General Information of Yuchai   YC6108CA1      Marine Engine

Engine Model YC6108CA1

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 6-valve

Piston displacement (L) 6.871L

Net Weight 700kg

Dimensions (L × W × H) (mm) 1252×780×1075

Bore*Stroke(mm) 108* 125

Compression ratio 17.5:1

Technical Specification of Yuchai  YC6108CA1   Marine Engine

Aspiration Naturally aspirated

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 82(112)/2000

Overload power / speed (kW (Ps) / r / min) 90.2(125)/2065

Engine Cooling System Water cooled

Performance Data of Yuchai   YC6108CA1         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤200

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box HC65、120C、MB170 etc.

certificate ZC、CCS

As optional of Yuchai   YC6108CA1 Marine  Engine

Control Panel As optional
