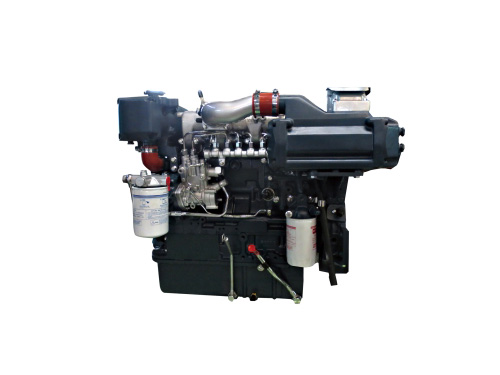

YUCHAI Marine Engine YC4F115C-31 and spare parts

YUCHAI Marine Engine YC4F115C-31 and spare parts
Product description: YUCHAI Marine Engine YC4F115C-31 and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC4F115C-31 and spare parts

General Information of Yuchai   YC4F115C-31      Marine Engine

Engine Model YC4F115C-31

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 4-valve

Piston displacement (L) 2.66L

Net Weight 420kg

Dimensions (L × W × H) (mm) 866×623×738

Bore*Stroke(mm) 92* 100

Compression ratio 16.3:1

Technical Specification of Yuchai  YC4F115C-31   Marine Engine

Aspiration Turbocharged

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 85(115)/3100

Overload power / speed (kW (Ps) / r / min) 93.5(130)/3200

Engine Cooling System Water cooled

Performance Data of Yuchai   YC4F115C-31         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤195

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box HC038A etc.

certificate ZC、CCS

As optional of Yuchai   YC4F115C-31 Marine  Engine

Control Panel As optional
