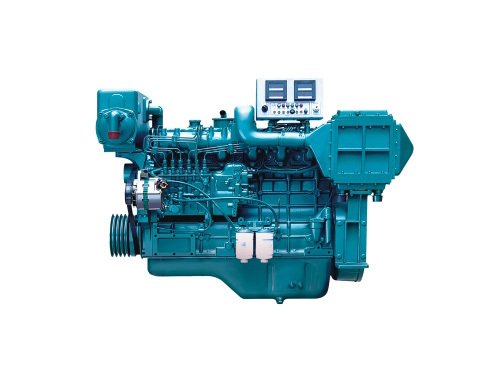

YUCHAI Marine Engine YC6108ZC and spare parts

YUCHAI Marine Engine YC6108ZC and spare parts
Product description: YUCHAI Marine Engine YC6108ZC and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC6108ZC and spare parts

General Information of Yuchai   YC6108ZC      Marine Engine

Engine Model YC6108ZC

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 6-valve

Piston displacement (L) 6.871L

Net Weight 720kg

Dimensions (L × W × H) (mm) 1293×780×1198

Bore*Stroke(mm) 108* 125

Compression ratio 17.5:1

Technical Specification of Yuchai  YC6108ZC   Marine Engine

Aspiration Turbocharged

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 80(109)/1500

Overload power / speed (kW (Ps) / r / min) 88(120)/1548

Engine Cooling System Water cooled

Performance Data of Yuchai   YC6108ZC         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤198

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box HC65、120C etc.

As optional of Yuchai   YC6108ZC Marine  Engine

Control Panel As optional

PREVIOUS：YUCHAI Marine Engine YC6108CA1 and spare part NEXT：YUCHAI Marine Engine YC6108ZCA and spare part

Yuchai marine Enine

YUCHAI Marine Engine YC6108ZC and spare parts

Inquiry

RELATED PRODUCTS

PRODUCT CATEGORIES

General Information of Yuchai YC6108ZC Marine Engine
Engine Model	YC6108ZC
Configuration	Vertical,in-line,4-stroke， Direct injection
Number of valves per cylinder	6-valve
Piston displacement (L)	6.871L
Net Weight	720kg
Dimensions (L × W × H) (mm)	1293×780×1198
Bore*Stroke(mm)	108* 125
Compression ratio	17.5:1

Technical Specification of Yuchai YC6108ZC Marine Engine
Aspiration	Turbocharged
Governor	Electric starter
Continuous power / speed (kW (Ps) / r / min)	80(109)/1500
Overload power / speed (kW (Ps) / r / min)	88(120)/1548
Engine Cooling System	Water cooled

Performance Data of Yuchai YC6108ZC Marine Engine
Fuel consumption at full load (g / kW ∙ h)	≤198
Oil consumption (g / kW • h)	≤0.8
Crankshaft rotation direction (facing the power output terminal)	Anticlockwise
Adapter gear box	HC65、120C etc.
As optional of Yuchai YC6108ZC Marine Engine
Control Panel	As optional
