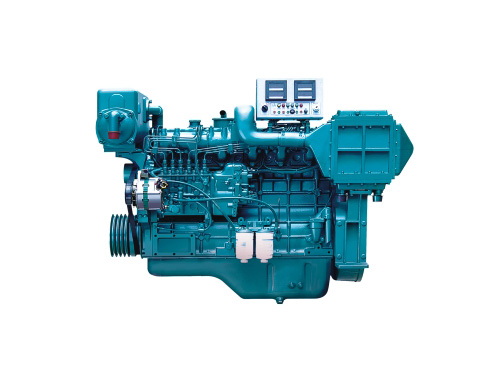

YUCHAI Marine Engine YC6B100-C20 and spare parts

YUCHAI Marine Engine YC6B100-C20 and spare parts
Product description: YUCHAI Marine Engine YC6B100-C20 and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC6B100-C20 and spare parts

General Information of Yuchai   YC6B100-C20      Marine Engine

Engine Model YC6B100-C20

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 6-valve

Piston displacement (L) 6.871L

Net Weight 700kg

Dimensions (L × W × H) (mm) 1252×780×1075

Bore*Stroke(mm) 108* 125

Compression ratio 17.5:1

Technical Specification of Yuchai  YC6B100-C20   Marine Engine

Aspiration Naturally aspirated

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 74(100)/1800

Overload power / speed (kW (Ps) / r / min) 81.4(110)/1858

Engine Cooling System Water cooled

Performance Data of Yuchai   YC6B100-C20         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤200

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box HC65、120C、MB170 etc.

certificate ZC、CCS

As optional of Yuchai   YC6B100-C20 Marine  Engine

Control Panel As optional
