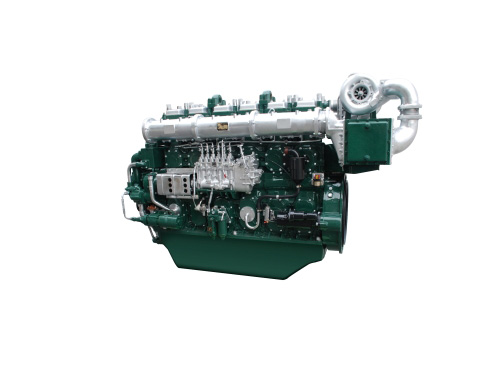

YUCHAI Marine Engine YC6CL960L-C20 and spare parts
| General Information of Yuchai YC6CL960L-C20 Marine Engine | |
| Engine Model | YC6CL960L-C20 |
| Configuration |
Vertical,in-line,4-stroke，
Direct injection |
| Number of valves per cylinder | 6-valve |
| Piston displacement (L) | 54.6 L |
| Net Weight | 5380kg |
| Dimensions (L × W × H) (mm) | 2870×1260×2350 |
| Bore*Stroke(mm) | 200* 290 |
| Compression ratio | 14.5:1 |
| Technical Specification of Yuchai YC6CL960L-C20 Marine Engine | |
| Aspiration | Turbocharged |
| Governor | Electric starter (starter optional) |
| Continuous power / speed (kW (Ps) / r / min) | 706(960)/900 |
| Overload power / speed (kW (Ps) / r / min) | 776.6(1060)/929 |
| Engine Cooling System | Water cooled |
| Performance Data of Yuchai YC6CL960L-C20 Marine Engine | |
| Fuel consumption at full load (g / kW ∙ h) | ≤195 |
| Oil consumption (g / kW • h) | ≤0.8 |
| Oil Capacity (L) | 150-180 |
| Minimum stable speed (r / min) | ≤360 |
| Crankshaft rotation direction (facing the power output terminal) | Counterclockwise |
| Adaptation marine units | 1200kw, 1400kw, etc. |
| certificate | ZC、CCS、IMO |
| As optional of Yuchai YC6CL960L-C20 Marine Engine | |
| Control Panel | As optional |
