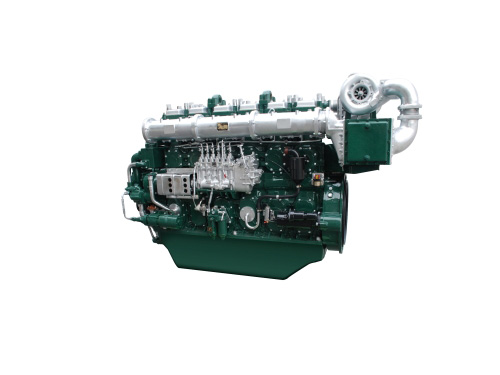

 YUCHAI Marine Engine YC6CL1035L-C20 and spare parts

General Information of Yuchai  YC6CL1035L-C20   Marine Engine
Engine Model YC6CL1035L-C20
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 54.6 L
Net Weight 5380kg
Dimensions (L × W × H) (mm) 2870×1260×2350
Bore*Stroke(mm) 200* 290
Compression ratio 14.5:1
Technical Specification of Yuchai  YC6CL1035L-C20        Marine Engine
Aspiration Turbocharged
Governor Electric starter (starter optional)
Continuous power / speed (kW (Ps) / r / min) 760(1035)/1000
Overload power / speed (kW (Ps) / r / min) 836(1140)/1032
Engine Cooling System Water cooled
Performance Data of Yuchai  YC6CL1035L-C20         Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤195
Oil consumption (g / kW • h) ≤0.8
Oil Capacity (L) 150-180
Minimum stable speed (r / min) ≤400
Crankshaft rotation direction (facing the power output terminal) Counterclockwise
Adaptation marine units 1200kw, 1400kw, etc.
certificate ZC、CCS、IMO
As optional of Yuchai   YC6CL1035L-C20                  Marine  Engine
Control Panel As optional
