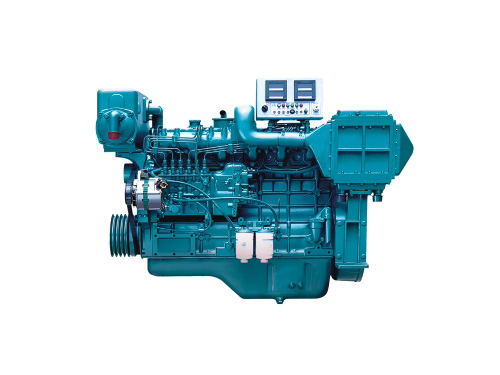

YUCHAI Marine Engine YC6105CA1 and spare parts

General  Information of  Yuchai YC6105CA1 Marine Engine
Engine Model YC6105CA1
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 6.494L
Net Weight 700kg
Dimensions (L × W × H) (mm) 1252×780×1075
Bore*Stroke(mm) 105* 125
Compression ratio 16.5:1
Technical Specification of Yuchai YC6105CA1 Marine Engine
Aspiration Naturally aspirated
Governor Electric starter
Continuous power / speed (kW (Ps) / r / min) 66(90)/2000
Overload power / speed (kW (Ps) / r / min) 72.6(100)/2064
Engine Cooling System Water cooled
Performance Data of Yuchai YC6105CA1 Marine Engine
Fuel consumption at full load (g / kW ∙ h) ≤200
Oil consumption (g / kW • h) ≤0.8
Crankshaft rotation direction (facing the power output terminal) Anticlockwise
Adapter gear box HC65、120C、MB170 etc.
certificate ZC、CCS
As optional of  Yuchai YC6105CA1 Marine Engine
Control Panel As optional
