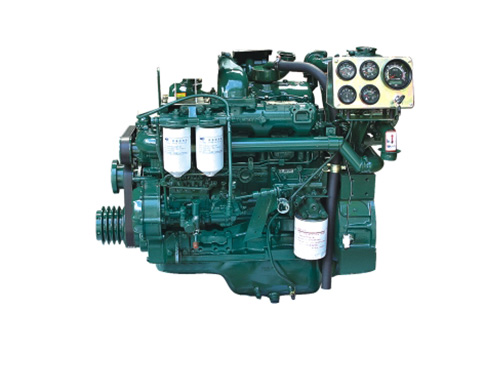

YUCHAI Marine Engine YC4108CA and spare parts

      General  Information of  Yuchai   YC4108CA        Marine Engine
Engine Model YC4108CA
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 4-valve
Piston displacement (L) 4.214L
Net Weight 370kg
Dimensions (L × W × H) (mm) 986×730×948
Bore*Stroke(mm) 108* 115
Compression ratio 17:01
       Technical Specification of Yuchai  YC4108CA      Marine Engine
Aspiration Naturally aspirated
Governor Electric starter
Continuous power / speed (kW (Ps) / r / min) 32(45)/1500
Overload power / speed (kW (Ps) / r / min) 35.2(50)/1548
Engine Cooling System Water cooled
          Performance Data of Yuchai   YC4108CA              Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤200
Oil consumption (g / kW • h) ≤0.8
Crankshaft rotation direction (facing the power output terminal) Anticlockwise
Adapter gear box H35、MB142、40A、MB170、MBS170  etc.
certificate ZC、CCS
               As optional of  Yuchai   YC4108CA                 Marine  Engine
Control Panel As optional
