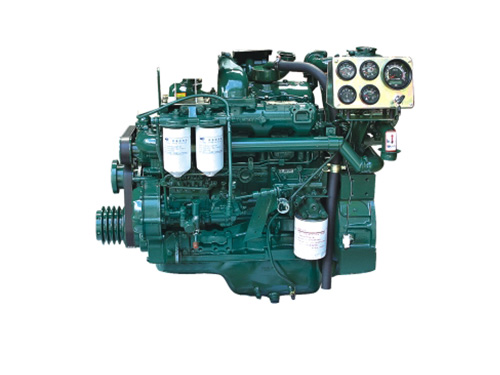

YUCHAI Marine Engine YC4D80-C20 and spare parts

YUCHAI Marine Engine YC4D80-C20 and spare parts
Product description: YUCHAI Marine Engine YC4D80-C20 and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC4D80-C20 and spare parts

General Information of Yuchai   YC4D80-C20      Marine Engine

Engine Model YC4D80-C20

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 4-valve

Piston displacement (L) 4.214L

Net Weight 370kg

Dimensions (L × W × H) (mm) 986×730×948

Bore*Stroke(mm) 108* 115

Compression ratio 17:01

Technical Specification of Yuchai  YC4D80-C20   Marine Engine

Aspiration Naturally aspirated

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 58(80)/2400

Overload power / speed (kW (Ps) / r / min) 63.8(85)/2478

Engine Cooling System Water cooled

Performance Data of Yuchai   YC4D80-C20         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤200

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box H35、MB142、40A、MB170、MBS170 etc.

As optional of Yuchai   YC4D80-C20 Marine  Engine

Control Panel As optional
