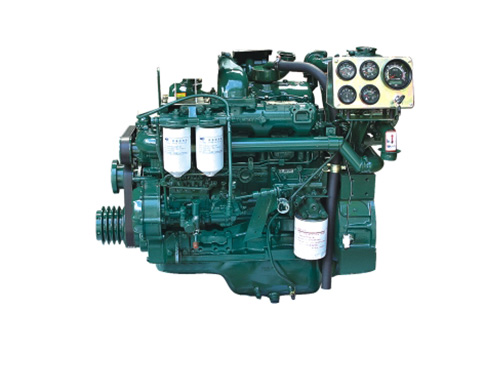

YUCHAI Marine Engine YC4D55C and spare parts

YUCHAI Marine Engine YC4D55C and spare parts
Product description: YUCHAI Marine Engine YC4D55C and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC4D55C and spare parts

General Information of Yuchai   YC4D55C      Marine Engine

Engine Model YC4D55C

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 4-valve

Piston displacement (L) 4.214L

Net Weight 370kg

Dimensions (L × W × H) (mm) 986×730×948

Bore*Stroke(mm) 108* 115

Compression ratio 17:01

Technical Specification of Yuchai  YC4D55C   Marine Engine

Aspiration Naturally aspirated

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 40(55)/1800

Overload power / speed (kW (Ps) / r / min) 44(60)/1858

Engine Cooling System Water cooled

Performance Data of Yuchai   YC4D55C         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤200

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box H35、MB142、40A、MB170、MBS170 etc.

As optional of Yuchai   YC4D55C Marine  Engine

Control Panel As optional

PREVIOUS：YUCHAI Marine Engine YC4D80-C20 and spare par NEXT：YUCHAI Marine Engine YC4108C and spare parts

Yuchai marine Enine

YUCHAI Marine Engine YC4D55C and spare parts

Inquiry

RELATED PRODUCTS

PRODUCT CATEGORIES

General Information of Yuchai YC4D55C Marine Engine
Engine Model	YC4D55C
Configuration	Vertical,in-line,4-stroke， Direct injection
Number of valves per cylinder	4-valve
Piston displacement (L)	4.214L
Net Weight	370kg
Dimensions (L × W × H) (mm)	986×730×948
Bore*Stroke(mm)	108* 115
Compression ratio	17:01

Technical Specification of Yuchai YC4D55C Marine Engine
Aspiration	Naturally aspirated
Governor	Electric starter
Continuous power / speed (kW (Ps) / r / min)	40(55)/1800
Overload power / speed (kW (Ps) / r / min)	44(60)/1858
Engine Cooling System	Water cooled

Performance Data of Yuchai YC4D55C Marine Engine
Fuel consumption at full load (g / kW ∙ h)	≤200
Oil consumption (g / kW • h)	≤0.8
Crankshaft rotation direction (facing the power output terminal)	Anticlockwise
Adapter gear box	H35、MB142、40A、MB170、MBS170 etc.
As optional of Yuchai YC4D55C Marine Engine
Control Panel	As optional
