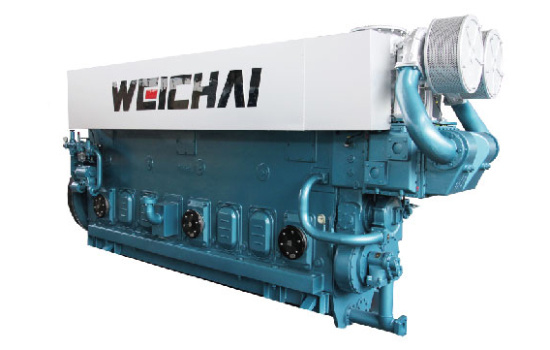

Weichai Marine Propulsion Engine of CW8250ZLC and spare parts
Notes: ZLC means supercharge intercooling marine main engine, ZLD means supercharge intercooling marine marine auxiliaries.
General Information of Weichai CW8250ZLC Marine Propulsion Engine
Engine Model
CW8250ZLC
Engine Type
8 Cylinders in Line
Displacement
117.81L
Bore*Stroke(mm)
250*300
Net Weight (with flywleel & alternator)
15300Kg
Overall Diemension(L*W*H)
4730mm*1400mm*2500mm
Rotation direction of crankshaft
Clockwise
Start mode
Air motor
Technical Specification of Weichai CW8250ZLC Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Fuel
0#diesel、1500s heavy oil
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Cooling Mode
Water cooling
Performance Data of Weichai CW8250ZLC Marine Propulsion Engine
Rated Power/Speed
1960kW/1000rpm
Noise
≤110dB
Min. steady working speed
400r/min
Compression ratio
13:1
Min. fuel oil consumption
≤200g/Kw.h
Fuel consumption @rated power
≤1.3g/Kw.h
As optional of Weichai CW8250ZLC Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
