Weichai Marine Propulsion Engine of 12V32/40 and Spare Parts

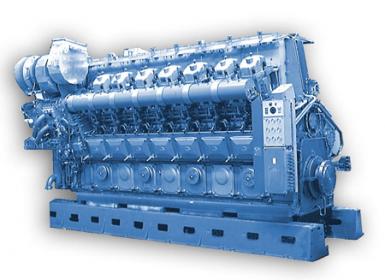

General Information of Weichai 12V32/40 Marine Propulsion Engine
Engine Model 12V32/40
Engine Type 12 Cylinders in Line
Displacement 386.04L
Bore*Stroke(mm) 320*400
Net Weight 61T.
Overall Diemension(L*H*W*H) 6915mm*3140mm*4100mm*3230mm
Rotation direction of crankshaft(seen from the free end) Clockwise
Start mode Air motor
Technical Specification of Weichai 12V32/40 Marine Propulsion Engine
Marine Certification CCS
Aspiration Turbocharged and intercooled
Governor Mechanical
Electrical System(Starter Motor/Alternator) 12V/24V
Cooling Mode high and low tempreture fresh water binary
Performance Data of Weichai 12V32/40 Marine Propulsion Engine
Rated Power/Speed 6000kW/750rpm
Compression ratio 15.2:1
Min. fuel oil consumption 182g/Kw.h
Fuel consumption @rated power 185/Kw.h
As optional of  Weichai 12V32/40 Marine Propulsion Engine
Control Panel As optional
Marine Gearbox As optional of Advance or Fada

Notes: H* is the hoisting height benchmarked at the center of the bent axle.

Curves shown above represent gross engine performance capabilities obtained and corrected in accordance with GB/T18297.
