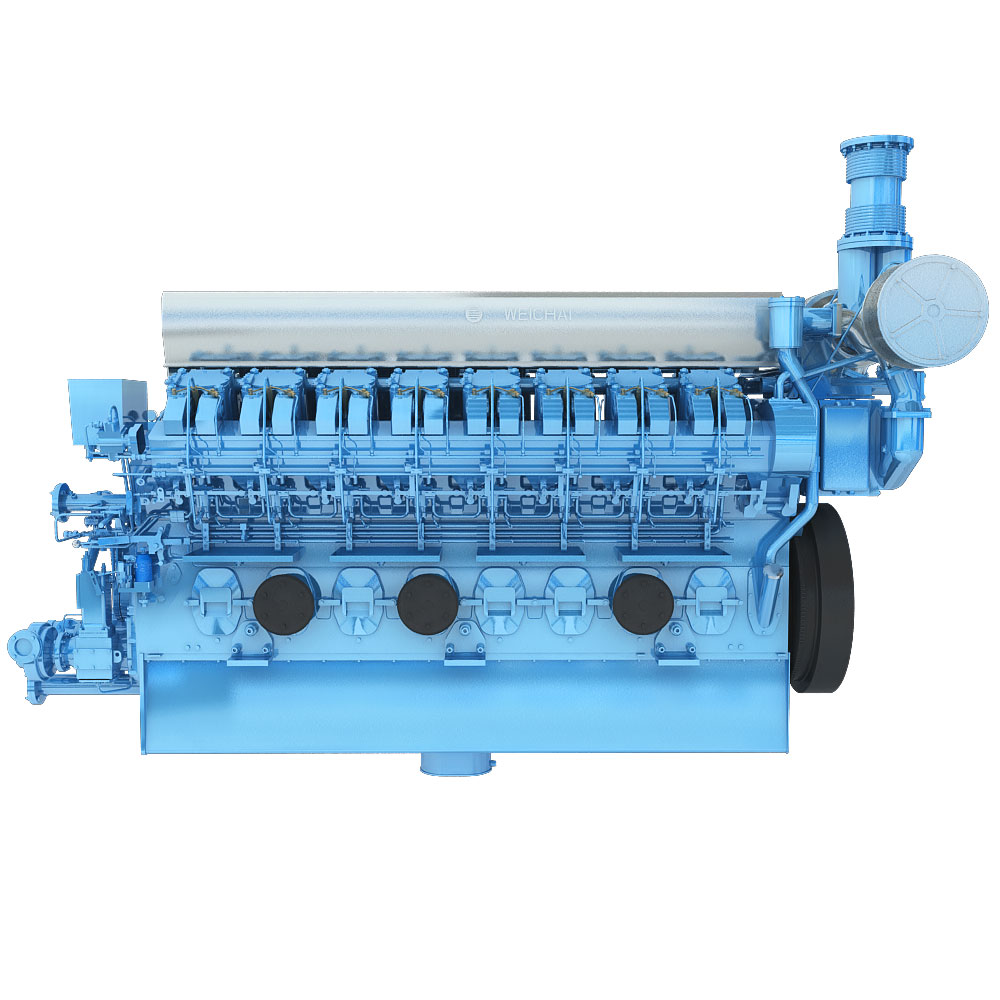

Weichai Marine Propulsion Engine of CW12V200ZC and spare parts
General Information of Weichai CW12V200ZC Marine Propulsion Engine
Engine Model
CW12V200ZC
Engine Type
12 Cylinders in Line
Displacement
101.784 L
Bore*Stroke(mm)
200 * 270
Net Weight (with flywleel & alternator)
10900Kg
Overall Diemension(L*W*H)
3955mm*1700mm*2600mm
Rotation direction of crankshaft
Clockwise
Start mode
Air motor
Technical Specification of Weichai CW12V200ZC Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Cooling Mode
Water cooling
Performance Data of Weichai CW12V200ZC Marine Propulsion Engine
Rated Power/Speed
1200kW/1000rpm
Compression ratio
13.37:1
Fuel consumption @ rated power
≤205g/Kw.h
Lub oil and fuel consumption ratio
1g/Kw.h
As optional of Weichai CW12V200ZC Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
