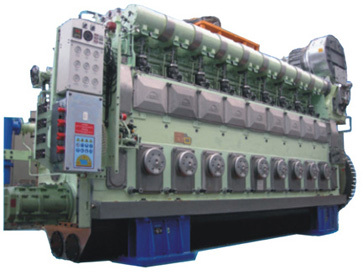

Weichai Marine Propulsion Engine of 9L32/40 and spare parts
Notes: H* is the hoisting height benchmarked at the center of the bent axle.
Curves shown above represent gross engine performance capabilities obtained and corrected in accordance with GB/T18297.
General Information of Weichai 9L32/40 Marine Propulsion Engine
Engine Model
9L32/40
Engine Type
9 Cylinders in Line
Displacement
289.53L
Bore*Stroke(mm)
320*400
Net Weight
51T.
Overall Diemension(L*H*W*H)
7530mm*2715mm*4490mm*3460mm
Rotation direction of crankshaft(seen from the free end)
Clockwise
Start mode
Air motor
Technical Specification of Weichai 9L32/40 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Cooling Mode
high and low tempreture fresh water binary
Performance Data of Weichai 9L32/40 Marine Propulsion Engine
Rated Power/Speed
4500kW/750rpm
Compression ratio
15.2:1
Min. fuel oil consumption
182g/Kw.h
Fuel consumption @rated power
185/Kw.h
As optional of Weichai 9L32/40 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
