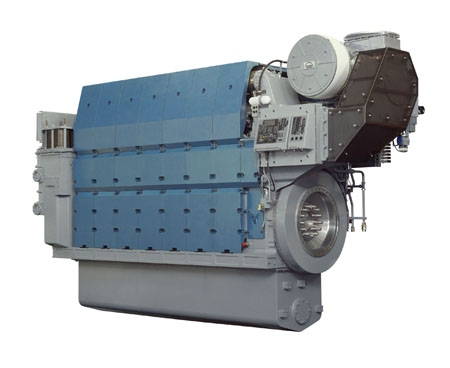

Weichai Marine Propulsion Engine of 8L27/38 and spare parts
Notes: H* is the hoisting height benchmarked at the center of the bent axle.
Curves shown above represent gross engine performance capabilities obtained and corrected in accordance with GB/T18297.
General Information of Weichai 8L27/38 Marine Propulsion Engine
Engine Model
8L27/38
Engine Type
8 Cylinders in Line
Displacement
174.4L
Bore*Stroke(mm)
270*380
Net Weight
36T.
Overall Diemension(L*H*W*H)
5960mm*2035mm*3687mm*2500mm
Rotation direction of crankshaft(seen from the free end)
Clockwise
Start mode
Air motor
Technical Specification of Weichai 8L27/38 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Cooling Mode
high and low tempreture fresh water binary
Performance Data of Weichai 8L27/38 Marine Propulsion Engine
Rated Power/Speed
2920kW/800rpm
Compression ratio
15.9:1
Fuel
MGO
Min. fuel oil consumption
185(HFO/MDO)/186(MGO)
g/Kw.h
Fuel consumption @rated power
191/Kw.h
As optional of Weichai 8L27/38 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
