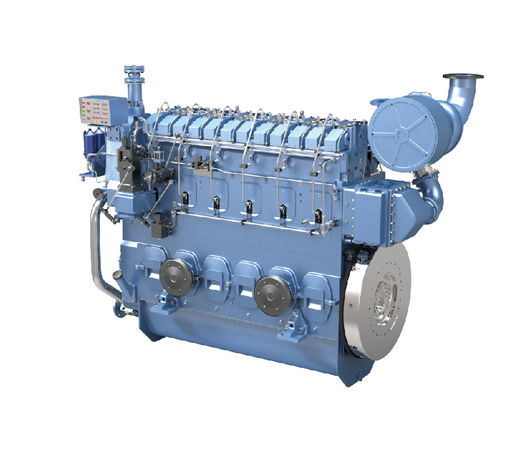

Weichai Marine Propulsion Engine XCW8200ZC-1 and spare parts

General Information of Weichai XCW8200ZC-1 Marine Propulsion Engine
Engine Model XCW8200ZC-1
Engine Type 8 Cylinders in Line
Displacement 67.856 L
Bore*Stroke(mm) 200 * 270
Net Weight (with flywleel & alternator) 7800Kg
Overall Diemension(L*W*H) 3400mm*1395mm*2230mm
Rotation direction of crankshaft Clockwise
Start mode Air motor
Technical Specification of Weichai XCW8200ZC-1 Marine Propulsion Engine
Marine Certification CCS
Aspiration Turbocharged and intercooled
Governor Mechanical
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling System Sea and fresh water duel-circulation cooling system
Cooling Mode Water cooling
Performance Data of Weichai XCW8200ZC-1 Marine Propulsion Engine
Rated Power/Speed 960kW/1000rpm
Compression ratio 13.37:1
Fuel consumption @ rated power ≤197g/Kw.h
Lub oil and fuel consumption ratio 0.8g/Kw.h
As optional of  Weichai XCW8200ZC-1 Marine Propulsion Engine
Control Panel As optional
Marine Gearbox As optional of Advance or Fada
