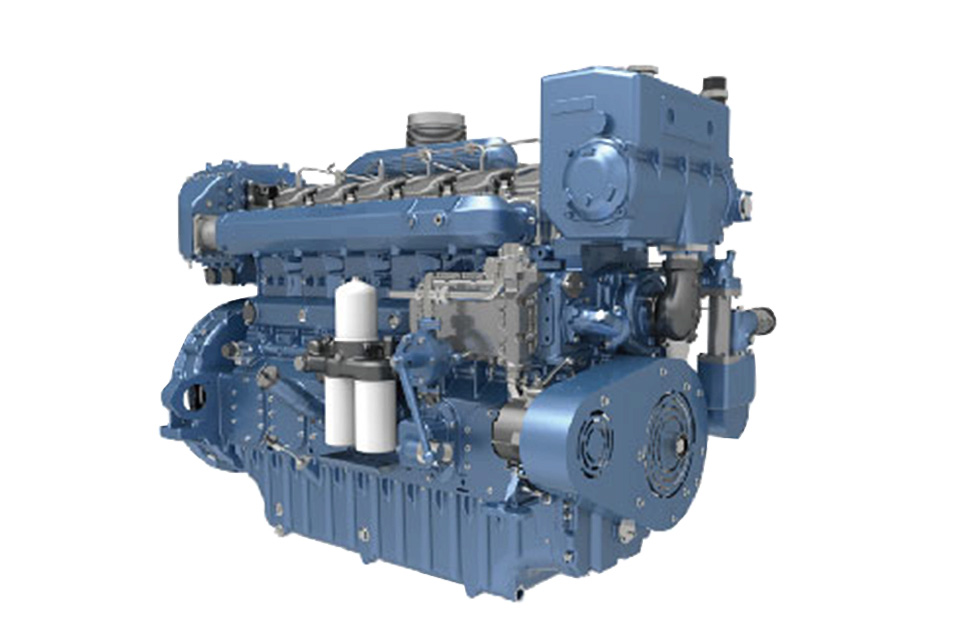

Weichai Marine Propulsion Engine X6170ZC300-1 and spare parts
General Information of Weichai X6170ZC300-1 Marine Propulsion Engine
Engine Model
X6170ZC300-1
Engine Type
6 Cylinders in Line
Displacement
27.24 L
Bore*Stroke(mm)
170 * 200
Net Weight (with flywleel & alternator)
3100±50Kg
Overall Diemension(L*W*H)
2432mm*1219mm*1816mm
Rotation direction of crankshaft
Counter Clockwise
Start mode
Electric start
Technical Specification of Weichai X6170ZC300-1 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Performance Data of Weichai X6170ZC300-1 Marine Propulsion Engine
Rated Power/Speed
220kW/1000rpm
Compression ratio
15.1:1
Fuel consumption @ rated power
≤205g/Kw.h
Min. fuel oil consumption
197g/Kw.h
Lub oil and fuel consumption ratio
≤0.89%
As optional of Weichai X6170ZC300-1 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
