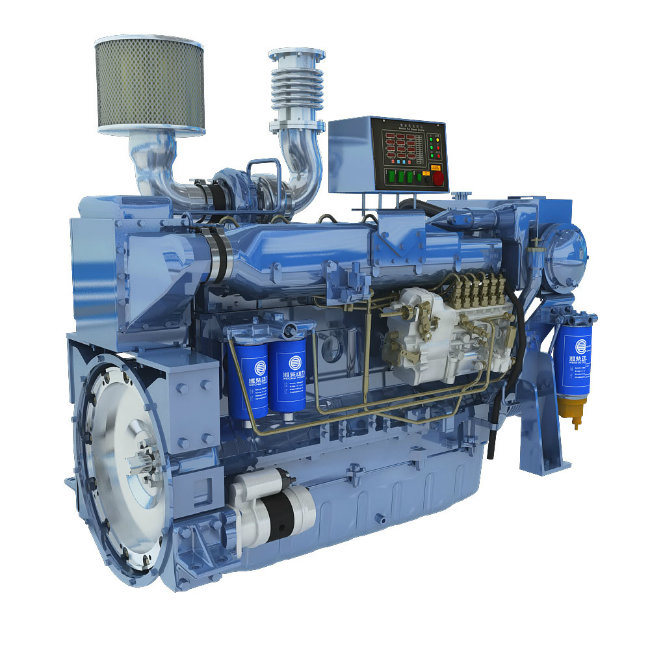

Weichai Marine Propulsion Engine WP4C82-15 and spare parts
General Information of Weichai WP4C82-15 Marine Propulsion Engine
Engine Model
WP4C82-15
Engine Type
4 Cylinders in Line
Displacement
4.5 L
Bore*Stroke(mm)
105 * 130
Net Weight (with flywleel & alternator)
600±50Kg
Overall Diemension(L*W*H)
1058mm*820mm*1061mm
Rotation direction of crankshaft
Clockwise
Start mode
Electric start
Technical Specification of Weichai WP4C82-15 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Performance Data of Weichai WP4C82-15 Marine Propulsion Engine
Rated Power/Speed
60Kw/1500rpm
Compression ratio
18
Fuel Consumption @ Rated Power
≤215g/Kw.h
Min.fuel oil consumption
205g/Kw.h
Lub oil and fuel consumption ratio
≤0.3%
As optional of Weichai WP4C82-15 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
