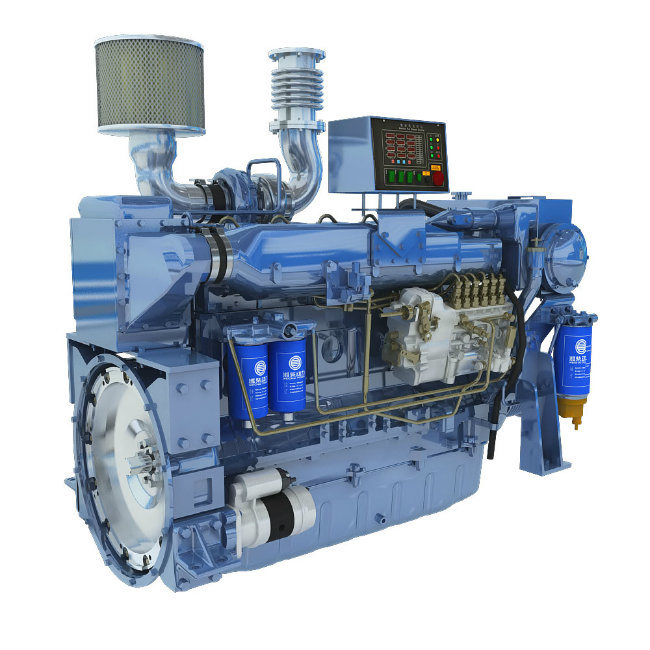

Weichai Marine Propulsion Engine WP4C102-21 and spare parts
General Information of Weichai WP4C102-21Marine Propulsion Engine
Engine Model
WP4C102-21
Engine Type
4 Cylinders in Line
Displacement
4.5 L
Bore*Stroke(mm)
105 * 130
Net Weight
600±50Kg
Overall Diemension(L*W*H)
1040mm*620mm*900mm
Rotation direction of crankshaft
Clockwise
Start mode
Electric start
Technical Specification of Weichai WP4C102-21 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
sea and fresh water duel-circulation cooling system
Performance Data of Weichai WP4C102-21 Marine Propulsion Engine
Rated Power/Speed
75Kw/2100rpm
Compression ratio
18
Fuel Consumption @ Rated Power
≤225g/Kw.h
Min. fuel oil consumption
205g/Kw.h
Lub oil and fuel consumption ratio
≤0.3%
As optional of Weichai WP4C102-21 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
