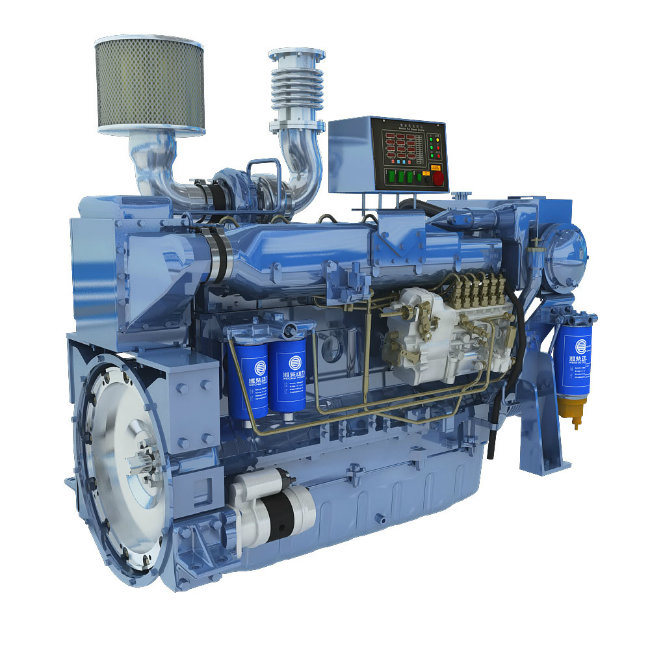

Weichai Marine Propulsion Engine

  • Weichai Marine Propulsion Engine WD615.C-28 and spare parts
Weichai Marine Propulsion Engine WD615.C-28 and spare parts

Weichai Marine Propulsion Engine WD615.C-28 and spare parts

  • Weichai Marine Propulsion Engine WD615.C-28 and spare parts
  • Product description: Weichai Marine Propulsion Engine WD615.C-28 and spare parts
  • INQUIRY   EMAIL

Weichai Marine Propulsion Engine WD615.C-28 and spare parts

General Information of Weichai WD615.C-28 Marine Propulsion Engine
Engine Model WD615.C-28
Engine Type 6 Cylinders in Line
Displacement 9.726 L
Bore*Stroke(mm) 126 * 130
Net Weight (with flywleel & alternator) 1056 Kg
Overall Diemension(L*W*H) 1900mm*774mm*1180mm
Rotation direction of crankshaft Clockwise
Start mode Electric start
Technical Specification of Weichai WD615.C-28 Marine Propulsion Engine
Marine Certification CCS
Aspiration Turbocharged
Governor Mechanical
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling System Sea and fresh water duel-circulation cooling system
Performance Data of Weichai WD615.C-28 Marine Propulsion Engine
Rated Power/Speed 125kW/1500rpm
Min. fuel oil consumption ≤220g/Kw.h
Lub oil and fuel consumption ratio ≤0.8%
As optional of  Weichai WD615.C-28 Marine Propulsion Engine
Control Panel As optional
Marine Gearbox As optional of Advance or Fada
