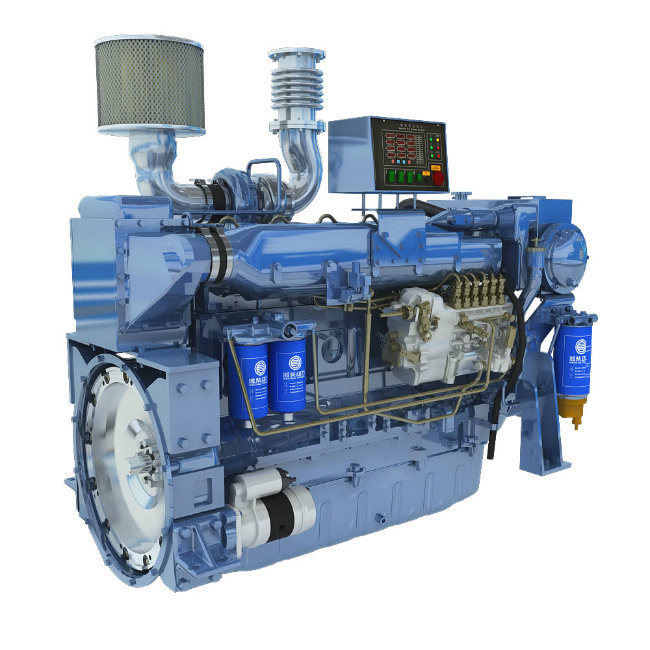

Weichai Marine Propulsion Engine WD615.C-21 and spare parts
General Information of Weichai WD615.C-21 Marine Propulsion Engine
Engine Model
WD615.C-21
Engine Type
6 Cylinders in Line
Displacement
9.726 L
Bore*Stroke(mm)
126 * 130
Net Weight (with flywleel & alternator)
1056 Kg
Overall Diemension(L*W*H)
1900mm*774mm*1180mm
Rotation direction of crankshaft
Clockwise
Start mode
Electric start
Technical Specification of Weichai WD615.C-21 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Performance Data of Weichai WD615.C-21 Marine Propulsion Engine
Rated Power/Speed
190kW/1500rpm
Min. fuel oil consumption
≤220g/Kw.h
Lub oil and fuel consumption ratio
≤0.8%
As optional of Weichai WD615.C-21 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
