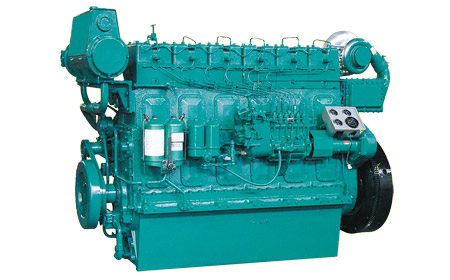

Weichai Marine Propulsion Engine R6160ZC408-1 and spare parts
General Information of Weichai R6160ZC408-1 Marine Propulsion Engine
Engine Model
R6160ZC408-1
Engine Type
6 Cylinders in Line
Displacement
27.14 L
Bore*Stroke(mm)
160 * 225
Net Weight (with flywleel & alternator)
3400Kg
Overall Diemension(L*W*H)
2644mm*1134mm*1768mm
Rotation direction of crankshaft
Counter Clockwise
Start mode
Electric start/air
Technical Specification of Weichai R6160ZC408-1 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Performance Data of Weichai R6160ZC408-1 Marine Propulsion Engine
Rated Power/Speed
300kW/1000rpm
Compression ratio
14.5:1
Fuel consumption @ rated power
≤210g/Kw.h
Min. fuel oil consumption
≤205g/Kw.h
Lub oil and fuel consumption ratio
≤1.36g/Kw.h
As optional of Weichai R6160ZC408-1 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
