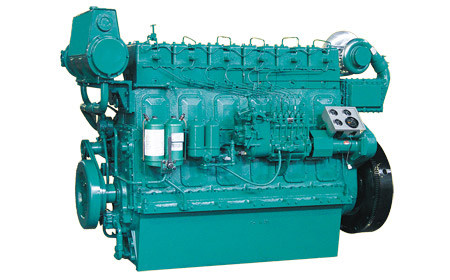

Weichai Marine Propulsion Engine R6160ZC223-5 and spare parts
| General Information of Weichai R6160ZC223-5 Marine Propulsion Engine | |
| Engine Model | R6160ZC223-5 |
| Engine Type | 6 Cylinders in Line |
| Displacement | 27.14 L |
| Bore*Stroke(mm) | 160 * 225 |
| Net Weight (with flywleel & alternator) | 3400Kg |
| Overall Diemension(L*W*H) | 2644mm*1134mm*1768mm |
| Rotation direction of crankshaft | Clockwise |
| Start mode | Electric start/air/both |
| Technical Specification of Weichai R6160ZC223-5 Marine Propulsion Engine | |
| Marine Certification | CCS |
| Aspiration | Turbocharged |
| Governor | Mechanical |
| Electrical System(Starter Motor/Alternator) | 12V/24V |
| Engine Cooling System | Sea and fresh water duel-circulation cooling system |
| Performance Data of Weichai R6160ZC223-5 Marine Propulsion Engine | |
| Rated Power/Speed | 164kW/850rpm |
| Compression ratio | 14.5:1 |
| Fuel consumption @ rated power | ≤218g/Kw.h |
| Min. fuel oil consumption | ≤205g/Kw.h |
| Lub oil and fuel consumption ratio | ≤1.36g/Kw.h |
| As optional of Weichai R6160ZC223-5 Marine Propulsion Engine | |
| Control Panel | As optional |
| Marine Gearbox | As optional of Advance or Fada |
