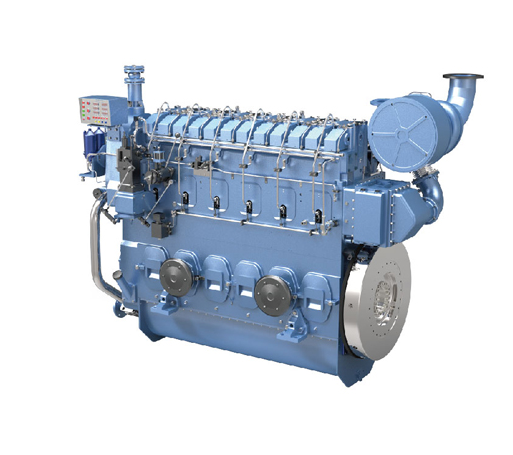

Weichai Marine Propulsion Engine CW6200ZC-51 and spare parts
General Information of Weichai CW6200ZC-51 Marine Propulsion Engine
Engine Model
CW6200ZC-51
Engine Type
6 Cylinders in Line
Displacement
50.892 L
Bore*Stroke(mm)
200 * 270
Net Weight (with flywleel & alternator)
6500Kg
Overall Diemension(L*W*H)
2845mm*1395mm*2185mm
Rotation direction of crankshaft
Clockwise
Start mode
Air motor
Technical Specification of Weichai CW6200ZC-51 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Cooling Mode
Water cooling
Performance Data of Weichai CW6200ZC-51 Marine Propulsion Engine
Rated Power/Speed
600kW/750rpm
Compression ratio
13.37:1
Fuel consumption @ rated power
≤200g/Kw.h
Lub oil and fuel consumption ratio
0.8g/Kw.h
As optional of Weichai CW6200ZC-51 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
