Weichai Marine Propulsion Engine CW6200ZC-5 and spare parts

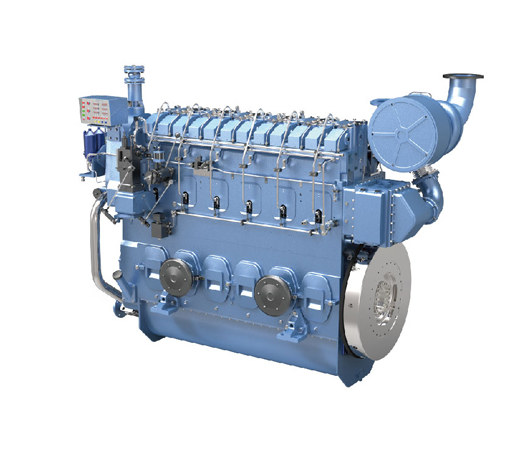

General Information of Weichai CW6200ZC-5 Marine Propulsion Engine
Engine Model CW6200ZC-5
Engine Type 6 Cylinders in Line
Displacement 50.892 L
Bore*Stroke(mm) 200 * 270
Net Weight (with flywleel & alternator) 6500Kg
Overall Diemension(L*W*H) 2836mm*1395mm*2185mm
Rotation direction of crankshaft Clockwise
Start mode Air motor
Technical Specification of Weichai CW6200ZC-5 Marine Propulsion Engine
Marine Certification CCS
Aspiration Turbocharged and intercooled
Governor Mechanical
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling System Sea and fresh water duel-circulation cooling system
Cooling Mode Water cooling
Performance Data of Weichai CW6200ZC-5 Marine Propulsion Engine
Rated Power/Speed 540kW/900rpm
Compression ratio 13.37:1
Fuel consumption @ rated power ≤200g/Kw.h
Lub oil and fuel consumption ratio 0.8g/Kw.h
As optional of  Weichai CW6200ZC-5 Marine Propulsion Engine
Control Panel As optional
Marine Gearbox As optional of Advance or Fada
