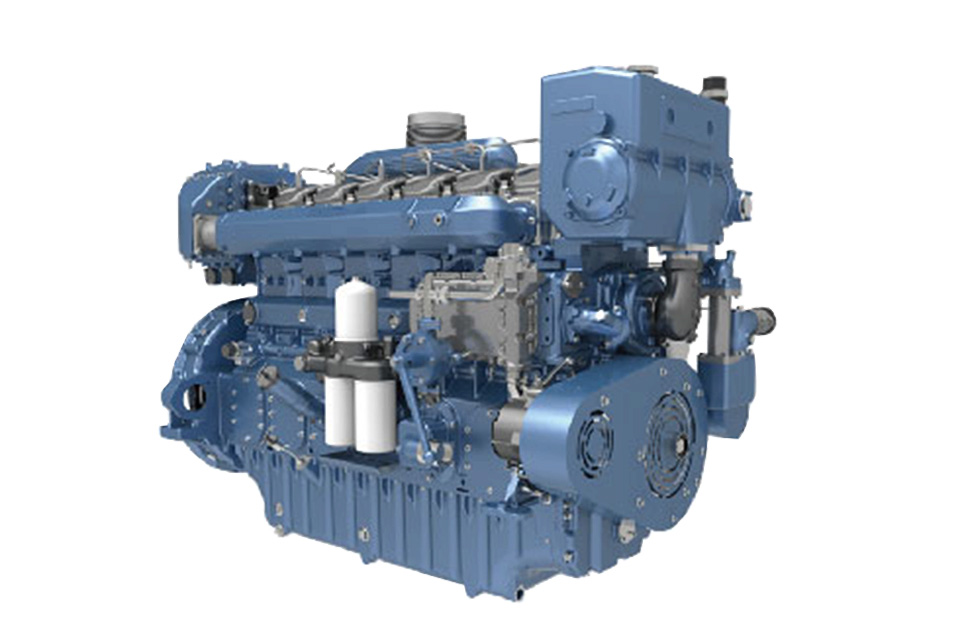

Weichai Marine Propulsion Engine 8170ZC600-1 and spare parts
General Information of Weichai 8170ZC600-1 Marine Propulsion Engine
Engine Model
8170ZC600-1
Engine Type
8 Cylinders in Line
Displacement
36.32 L
Bore*Stroke(mm)
170 * 200
Net Weight (with flywleel & alternator)
3600±50Kg
Overall Diemension(L*W*H)
2577mm*1117mm*1884mm
Rotation direction of crankshaft
Clockwise
Start mode
Electric start
Technical Specification of Weichai 8170ZC600-1 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Performance Data of Weichai 8170ZC600-1 Marine Propulsion Engine
Rated Power/Speed
441kW/1000rpm
Compression ratio
15.1:1
Fuel consumption @ rated power
≤208g/Kw.h
Min. fuel oil consumption
197g/Kw.h
Lub oil and fuel consumption ratio
≤0.76%
As optional of Weichai 8170ZC600-1 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
