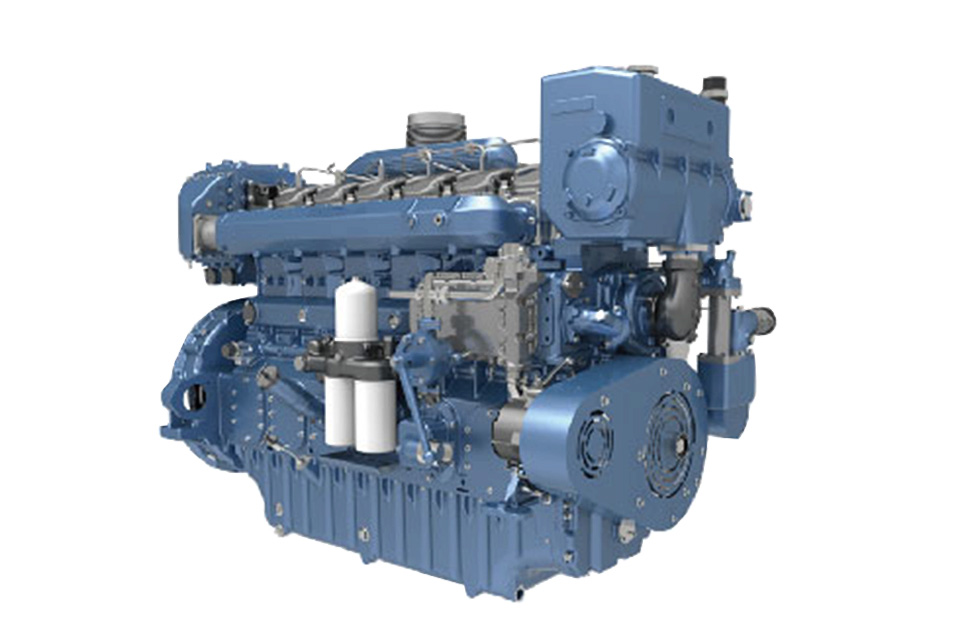

Weichai Marine Propulsion Engine 12M26C900-18 and spare parts
General Information of Weichai 12M26C900-18 Marine Propulsion Engine
Engine Model
12M26C900-18
Engine Type
12 Cylinders in Line
Displacement
31.8 L
Bore*Stroke(mm)
150 * 150
Net Weight (with flywleel & alternator)
3400±50Kg
Overall Diemension(L*W*H)
2433mm*1521mm*1816mm
Rotation direction of crankshaft
Clockwise
Start mode
Electric start
Technical Specification of Weichai 12M26C900-18 Marine Propulsion Engine
Marine Certification
CCS
Aspiration
Turbocharged and intercooled
Governor
Mechanical
Electrical System(Starter Motor/Alternator)
12V/24V
Engine Cooling System
Sea and fresh water duel-circulation cooling system
Performance Data of Weichai 12M26C900-18 Marine Propulsion Engine
Rated Power/Speed
662kW/1800rpm
Compression ratio
14:1
Fuel consumption @ rated power
≤209g/Kw.h
Lub oil and fuel consumption ratio
1.045g/Kw.h
As optional of Weichai 12M26C900-18 Marine Propulsion Engine
Control Panel
As optional
Marine Gearbox
As optional of Advance or Fada
