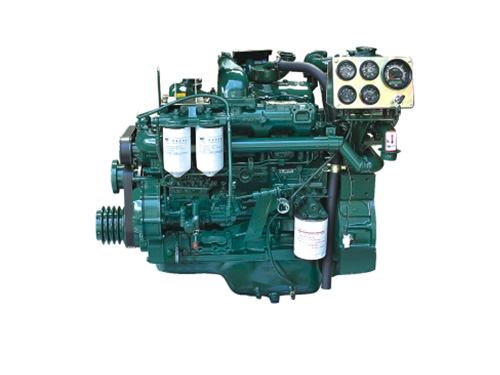

YUCHAI Marine Engine YC4D75C and spare parts
Direct injection
General Information of Yuchai YC4D75C Marine Engine
Engine Model
YC4D75C
Configuration
Vertical,in-line,4-stroke，
Number of valves per cylinder
4-valve
Piston displacement (L)
4.214L
Net Weight
390kg
Dimensions (L × W × H) (mm)
986×730×1254
Bore*Stroke(mm)
108* 115
Compression ratio
17:01
Technical Specification of Yuchai YC4D75C Marine Engine
Aspiration
Naturally aspirated
Governor
Electric starter
Continuous power / speed (kW (Ps) / r / min)
55(75)/1800
Overload power / speed (kW (Ps) / r / min)
60.5(80)/1858
Engine Cooling System
Water cooled
Performance Data of Yuchai YC4D75C Marine Engine
Fuel consumption at full load (g / kW ∙ h)
≤200
Oil consumption (g / kW • h)
≤0.8
Crankshaft rotation direction (facing the power output terminal)
Anticlockwise
Adapter gear box
HC65、MB170、MBS170 etc.
certificate
ZC、CCS
As optional of Yuchai YC4D75C Marine Engine
Control Panel
As optional
