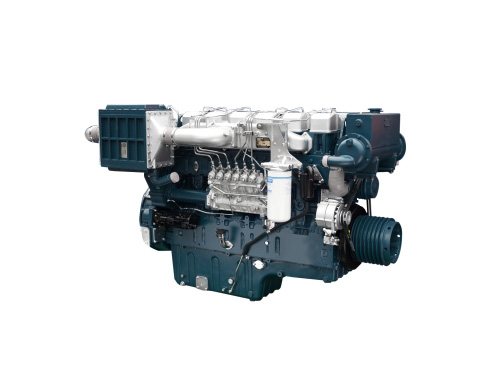

YUCHAI Marine Engine YC6TD600L-C20 and spare parts
| General Information of Yuchai YC6TD600L-C20 Marine Engine | |
| Engine Model | YC6TD600L-C20 |
| Configuration |
Vertical,in-line,4-stroke，
Direct injection |
| Number of valves per cylinder | 6-valve |
| Piston displacement (L) | 19.59 L |
| Net Weight | 1940kg |
| Dimensions (L × W × H) (mm) | 1956×980×1100 |
| Bore*Stroke(mm) | 152* 180 |
| Compression ratio | 14:1 |
| Technical Specification of Yuchai YC6TD600L-C20 Marine Engine | |
| Aspiration | Turbocharged |
| Governor | Electric starter (starter optional) |
| Continuous power / speed (kW (Ps) / r / min) | 441(600)/1500 |
| Overload power / speed (kW (Ps) / r / min) | 485(660)/1548 |
| Engine Cooling System | Water cooled |
| Performance Data of Yuchai YC6TD600L-C20 Marine Engine | |
| Fuel consumption at full load (g / kW ∙ h) | ≤195 |
| Oil consumption (g / kW • h) | ≤1.0 |
| Oil Capacity (L) | 52 |
| Minimum stable speed (r / min) | ≤675 |
| Crankshaft rotation direction (facing the power output terminal) | Counterclockwise |
| Adapter gear box | 400 etc. |
| certificate | ZC、CCS、IMO |
| As optional of Yuchai YC6TD600L-C20 Marine Engine | |
| Control Panel | As optional |
