  • YUCHAI Marine Engine YC6TD435L-C20 and spare parts
YUCHAI Marine Engine YC6TD435L-C20 and spare parts

YUCHAI Marine Engine YC6TD435L-C20 and spare parts

  • YUCHAI Marine Engine YC6TD435L-C20 and spare parts
  • Product description: YUCHAI Marine Engine YC6TD435L-C20 and spare parts
  • INQUIRY   EMAIL

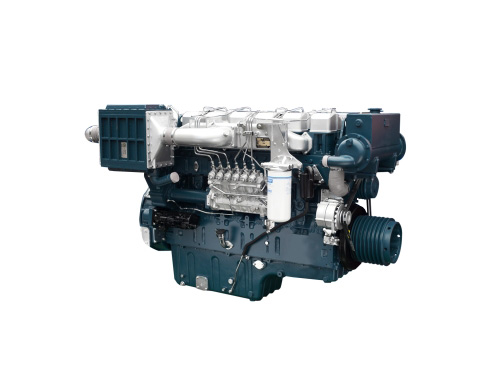

YUCHAI Marine Engine YC6TD435L-C20 and spare parts

General Information of Yuchai   YC6TD435L-C20             Marine Engine
Engine Model YC6TD435L-C20
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 19.59 L
Net Weight 1940kg
Dimensions (L × W × H) (mm) 1956×980×1100
Bore*Stroke(mm) 152* 180
Compression ratio 15.5:1
Technical Specification of Yuchai   YC6TD435L-C20                Marine Engine
Aspiration Turbocharged
Governor Electric starter (starter optional)
Continuous power / speed (kW (Ps) / r / min) 320(435)/1200
Overload power / speed (kW (Ps) / r / min) 352(480)/1239
Engine Cooling System Water cooled
           Performance Data of Yuchai   YC6TD435L-C20               Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤195
Oil consumption (g / kW • h) ≤1.0
Oil Capacity (L) 52
Minimum stable speed (r / min) ≤540
Crankshaft rotation direction (facing the power output terminal) Counterclockwise
Adapter gear box 400 etc.
certificate ZC、CCS、IMO
                         As optional of Yuchai  YC6TD435L-C20                          Marine  Engine
Control Panel As optional
