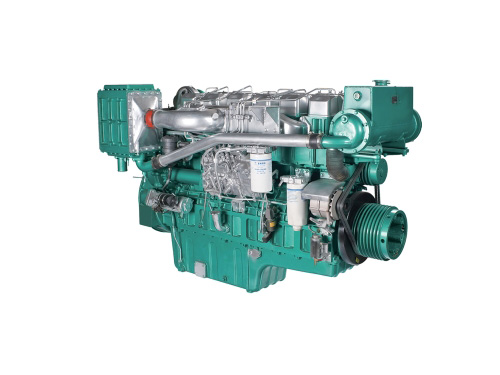

YUCHAI Marine Engine YC6T450C and spare parts

                  General Information of Yuchai YC6T450C                   Marine Engine
Engine Model YC6T450C
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 16.35 L
Net Weight 1980kg
Dimensions (L × W × H) (mm) 1880×1000×1860
Bore*Stroke(mm) 145* 165
Compression ratio 15.5:1
             Technical Specification of Yuchai   YC6T450C                         Marine Engine
Aspiration Turbocharged
Governor Electric starter (starter optional)
Continuous power / speed (kW (Ps) / r / min) 330(450)/1500
Overload power / speed (kW (Ps) / r / min) 363(495)/1548
Engine Cooling System Water cooled
              Performance Data of Yuchai   YC6T450C                Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤195
Oil consumption (g / kW • h) ≤1.0
Oil Capacity (L) 52
Minimum stable speed (r / min) ≤675
RPM 1500
Crankshaft rotation direction (facing the power output terminal) Anticlockwise
Adapter gear box 300、J300、D300, etc.
certificate ZC、CCS、IMO
                         As optional of Yuchai  YC6T450C                         Marine  Engine
Control Panel As optional
