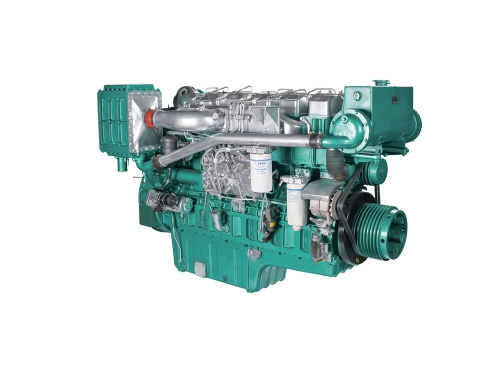

YUCHAI Marine Engine YC6T420C and spare parts
| General Information of Yuchai YC6T420C Marine Engine | |
| Engine Model | YC6T420C |
| Configuration |
Vertical,in-line,4-stroke，
Direct injection |
| Number of valves per cylinder | 6-valve |
| Piston displacement (L) | 16.35 L |
| Net Weight | 1980kg |
| Dimensions (L × W × H) (mm) | 1880×1000×1860 |
| Bore*Stroke(mm) | 145* 165 |
| Compression ratio | 15．5:1 |
| Technical Specification of Yuchai YC6T420C Marine Engine | |
| Aspiration | Turbocharged |
| Governor | Electric starter (starter optional) |
| Continuous power / speed (kW (Ps) / r / min) | 308(420)/1800 |
| Overload power / speed (kW (Ps) / r / min) | 338.8(460)/1858 |
| Engine Cooling System | Water cooled |
| Performance Data of Yuchai YC6T420C Marine Engine | |
| Fuel consumption at full load (g / kW ∙ h) | ≤195 |
| Oil consumption (g / kW • h) | ≤1.0 |
| Oil Capacity (L) | 52 |
| Minimum stable speed (r / min) | ≤810 |
| RPM | 1800 |
| Crankshaft rotation direction (facing the power output terminal) | Anticlockwise |
| Adapter gear box | 300、J300、D300, etc. |
| certificate | ZC、CCS、IMO |
| As optional of Yuchai YC6T420C Marine Engine | |
| Control Panel | As optional |
