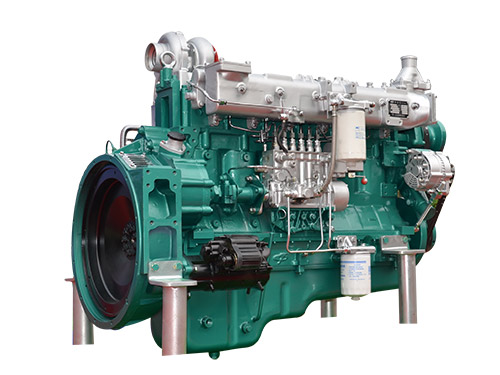

 YUCHAI Marine Engine  YC6MK320 and spare parts

        General Information of Yuchai  YC6MK320C         Marine Engine
Engine Model YC6MK320C
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 10.338L
Net Weight 1270kg
Dimensions (L × W × H) (mm) 1652×939×1262
Bore*Stroke(mm) 123* 145
Compression ratio 17.5:1
       Technical Specification of Yuchai   YC6MK320C       Marine Engine
Aspiration Turbocharged
Governor Electric starter
Continuous power / speed (kW (Ps) / r / min) 235(320)/1800
Overload power / speed (kW (Ps) / r / min) 258.5(350)/1858
Engine Cooling System Water cooled
          Performance Data of Yuchai   YC6MK320C               Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤189
Oil consumption (g / kW • h) ≤0.5
Crankshaft rotation direction (facing the power output terminal) Anticlockwise
Adapter gear box MB242、MB270、300 etc.
certificate ZC、CCS、IMO
               As optional of Yuchai   YC6MK320C                    Marine  Engine
Control Panel As optional
