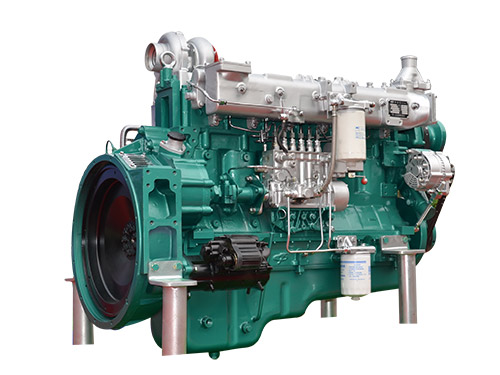

YUCHAI Marine Engine YC6MJ410L-C20 and spare parts
| General Information of Yuchai YC6MJ410L-C20 Marine Engine | |
| Engine Model | YC6MJ410L-C20 |
| Configuration |
Vertical,in-line,4-stroke，
Direct injection |
| Number of valves per cylinder | 6-valve |
| Piston displacement (L) | 11.73 L |
| Net Weight | 1250kg |
| Dimensions (L × W × H) (mm) | 1727×960×1272 |
| Bore*Stroke(mm) | 131* 145 |
| Compression ratio | 16.8：1 |
| Technical Specification of Yuchai YC6MJ410L-C20 Marine Engine | |
| Aspiration | Turbocharged |
| Governor | Electric starter |
| Continuous power / speed (kW (Ps) / r / min) | 300(410)/1800 |
| Overload power / speed (kW (Ps) / r / min) | 330(450)/1858 |
| Engine Cooling System | Water cooled |
| Performance Data of Yuchai YC6MJ410L-C20 Marine Engine | |
| Fuel consumption at full load (g / kW ∙ h) | ≤192 |
| Oil consumption (g / kW • h) | ≤0.5 |
| Crankshaft rotation direction (facing the power output terminal) | Anticlockwise |
| Adapter gear box | 300、J300、D300, etc. |
| certificate | CCS、IMO |
| As optional of Yuchai YC6MJ410L-C20 Marine Engine | |
| Control Panel | As optional |
