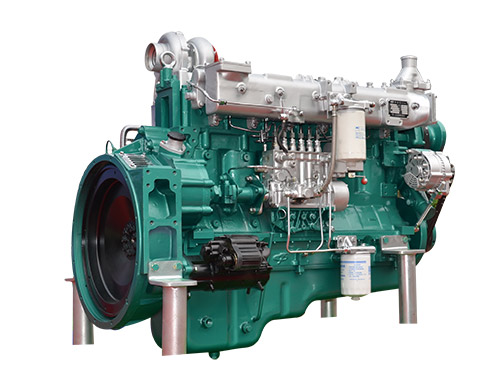

YUCHAI Marine Engine YC6M320C and spare parts

YUCHAI Marine Engine YC6M320C and spare parts
Product description: YUCHAI Marine Engine YC6M320C and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC6M320C and spare parts

General Information of Yuchai  YC6M320C     Marine Engine

Engine Model YC6M320C

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 6-valve

Piston displacement (L) 9.84L

Net Weight 1150kg

Dimensions (L × W × H) (mm) 1652×939×1262

Bore*Stroke(mm) 120* 145

Compression ratio 17.5：1

Technical Specification of Yuchai   YC6M320C   Marine Engine

Aspiration Turbocharged

Governor Electric starter(optional)

Continuous power / speed (kW (Ps) / r / min) 234(320)/2100

Overload power / speed (kW (Ps) / r / min) 257.4(350)/2168

Engine Cooling System Water cooled

Performance Data of Yuchai   YC6M320C          Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤189

Oil consumption (g / kW • h) ≤0.5

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box MB242、MB270、300 etc.

certificate ZC、CCS、IMO

As optional of Yuchai   YC6M320C Marine  Engine

Control Panel As optional
