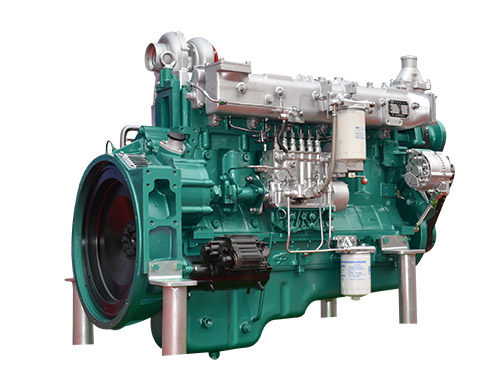

 YUCHAI Marine Engine YC6M295C and spare parts

        General Information of Yuchai  YC6M295C         Marine Engine
Engine Model YC6M295C
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 9.84L
Net Weight 1150kg
Dimensions (L × W × H) (mm) 1652×939×1262
Bore*Stroke(mm) 120* 145
Compression ratio 17.5:1
       Technical Specification of Yuchai   YC6M295C      Marine Engine
Aspiration Turbocharged
Governor Electric starter(optional)
Continuous power / speed (kW (Ps) / r / min) 216(295)/1800
Overload power / speed (kW (Ps) / r / min) 237.6(325)/1858
Engine Cooling System Water cooled
          Performance Data of Yuchai   YC6M295C               Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤189
Oil consumption (g / kW • h) ≤0.5
Crankshaft rotation direction (facing the power output terminal) Anticlockwise
Adapter gear box MB242、MB270、300 etc.
certificate ZC、CCS、IMO
               As optional of  Yuchai   YC6M295C                   Marine  Engine
Control Panel As optional
