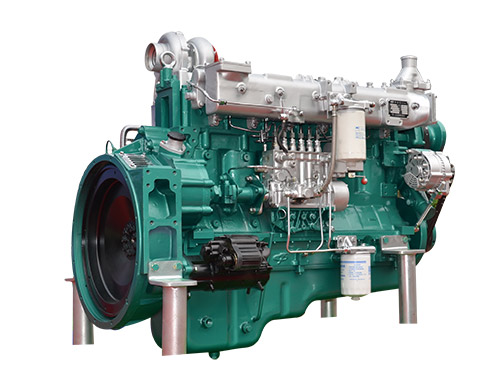

YUCHAI Marine Engine  YC6M260C and spare parts

        General Information of Yuchai  YC6M260C         Marine Engine
Engine Model YC6M260C
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 9.84L
Net Weight 1150kg
Dimensions (L × W × H) (mm) 1652×939×1262
Bore*Stroke(mm) 120* 145
Compression ratio 17.5:1
       Technical Specification of Yuchai   YC6M260C      Marine Engine
Aspiration Turbocharged
Governor Electric starter(optional)
Continuous power / speed (kW (Ps) / r / min) 192(260)/1500
Overload power / speed (kW (Ps) / r / min) 211.2(285)/1548
Engine Cooling System Water cooled
          Performance Data of Yuchai   YC6M260C               Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤189
Oil consumption (g / kW • h) ≤0.5
Crankshaft rotation direction (facing the power output terminal) Anticlockwise
Adapter gear box MB242、MB270、300 etc.
certificate ZC、CCS、IMO
               As optional of  Yuchai   YC6M260C                   Marine  Engine
Control Panel As optional
