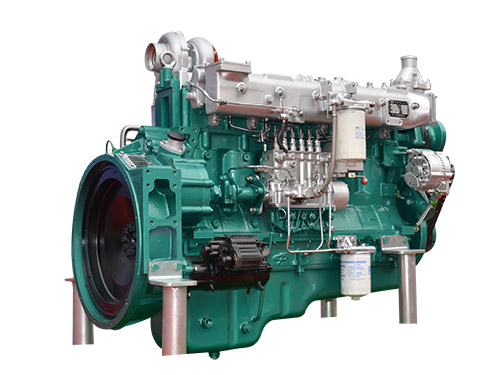

YUCHAI Marine Engine YC6M220C and spare parts
Direct injection
General Information of Yuchai YC6M220C Marine Engine
Engine Model
YC6M220C
Configuration
Vertical,in-line,4-stroke，
Number of valves per cylinder
6-valve
Piston displacement (L)
9.84L
Net Weight
1150kg
Dimensions (L × W × H) (mm)
1652×939×1262
Bore*Stroke(mm)
120* 145
Compression ratio
17.5：1
Technical Specification of Yuchai YC6M220C Marine Engine
Aspiration
Booster
Governor
Electric starter(optional)
Continuous power / speed (kW (Ps) / r / min)
162(220)/1800
Overload power / speed (kW (Ps) / r / min)
178.2(240)/1858
Engine Cooling System
Water cooled
Performance Data of Yuchai YC6M220C Marine Engine
Fuel consumption at full load (g / kW ∙ h)
≤189
Oil consumption (g / kW • h)
≤0.5
Crankshaft rotation direction (facing the power output terminal)
Anticlockwise
Adapter gear box
MB242、MB270、300 etc.
certificate
ZC、CCS、IMO
As optional of Yuchai YC6M220C Marine Engine
Control Panel
As optional
| General Information of Yuchai YC6M220C Marine Engine | |
| Engine Model | YC6M220C |
| Configuration |
Vertical,in-line,4-stroke，
Direct injection |
| Number of valves per cylinder | 6-valve |
| Piston displacement (L) | 9.84L |
| Net Weight | 1150kg |
| Dimensions (L × W × H) (mm) | 1652×939×1262 |
| Bore*Stroke(mm) | 120* 145 |
| Compression ratio | 17.5：1 |
| Technical Specification of Yuchai YC6M220C Marine Engine | |
| Aspiration | Booster |
| Governor | Electric starter(optional) |
| Continuous power / speed (kW (Ps) / r / min) | 162(220)/1800 |
| Overload power / speed (kW (Ps) / r / min) | 178.2(240)/1858 |
| Engine Cooling System | Water cooled |
| Performance Data of Yuchai YC6M220C Marine Engine | |
| Fuel consumption at full load (g / kW ∙ h) | ≤189 |
| Oil consumption (g / kW • h) | ≤0.5 |
| Crankshaft rotation direction (facing the power output terminal) | Anticlockwise |
| Adapter gear box | MB242、MB270、300 etc. |
| certificate | ZC、CCS、IMO |
| As optional of Yuchai YC6M220C Marine Engine | |
| Control Panel | As optional |
