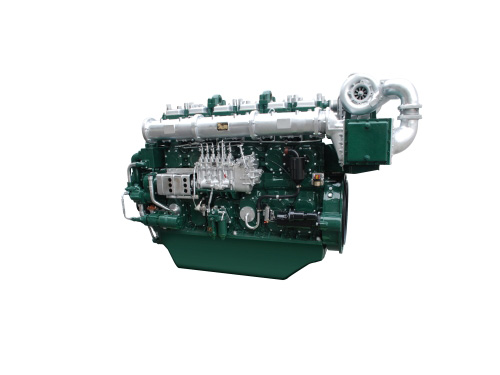

YUCHAI Marine Engine YC6CD540L-C20 and spare parts
| General Information of Yuchai YC6CD540L-C20 Marine Engine | |
| Engine Model | YC6CD540L-C20 |
| Configuration |
Vertical,in-line,4-stroke，
Direct injection |
| Number of valves per cylinder | 6-valve |
| Piston displacement (L) | 32 L |
| Net Weight | 4200kg |
| Dimensions (L × W × H) (mm) | 2760×1285×1940 |
| Bore*Stroke(mm) | 180* 210 |
| Compression ratio | 13.5:1 |
| Technical Specification of Yuchai YC6CD540L-C20 Marine Engine | |
| Aspiration | Turbocharged |
| Governor | Electric starter (starter optional) |
| Continuous power / speed (kW (Ps) / r / min) | 396(540)/1000 |
| Overload power / speed (kW (Ps) / r / min) | 435.6(735)/1032 |
| Engine Cooling System | Water cooled |
| Performance Data of Yuchai YC6CD540L-C20 Marine Engine | |
| Fuel consumption at full load (g / kW ∙ h) | ≤195 |
| Oil consumption (g / kW • h) | ≤0.8 |
| Oil Capacity (L) | 150-180 |
| Minimum stable speed (r / min) | ≤450 |
| Crankshaft rotation direction (facing the power output terminal) | Counterclockwise |
| Adaptation marine units | 600kw, 800kw, etc. |
| certificate | ZC、CCS、IMO |
| As optional of Yuchai YC6CD540L-C20 Marine Engine | |
| Control Panel | As optional |
