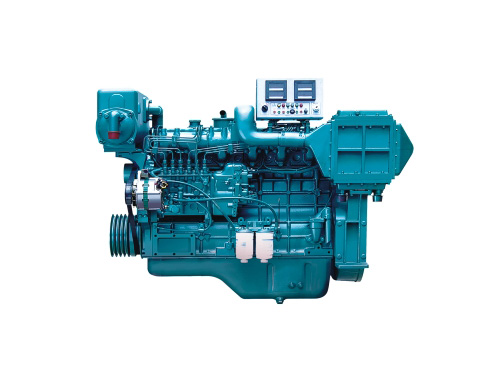

YUCHAI Marine Engine YC6B165L-C22 and spare parts

      General  Information of  Yuchai   YC6B165L-C22        Marine Engine
Engine Model YC6B165L-C22
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 6.871L
Net Weight 750kg
Dimensions (L × W × H) (mm) 1420×810×1020
Bore*Stroke(mm) 108* 125
Compression ratio 17.5:1
       Technical Specification of Yuchai  YC6B165L-C22      Marine Engine
Aspiration Turbocharged
Governor Electric starter
Continuous power / speed (kW (Ps) / r / min) 120(165)/1500
Overload power / speed (kW (Ps) / r / min) 132(180)/1500
Engine Cooling System Water cooled
          Performance Data of Yuchai   YC6B165L-C22              Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤198
Oil consumption (g / kW • h) ≤0.8
Crankshaft rotation direction (facing the power output terminal) Anticlockwise
certificate ZC、CCS
               As optional of  Yuchai   YC6B165L-C22                 Marine  Engine
Control Panel As optional
