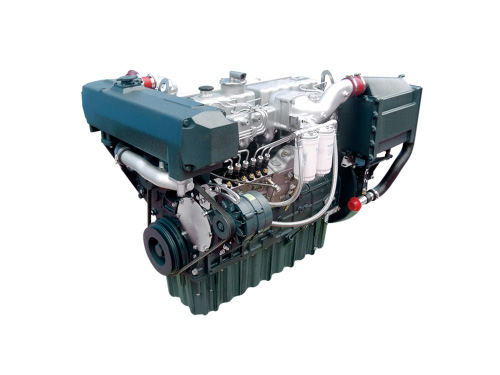

YUCHAI Marine Engine YC6A280L-C20 and spare parts

General Information of Yuchai YC6A280L-C20 Marine Engine
Engine Model YC6A280L-C20
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 7.252L
Net Weight 770kg
Dimensions (L × W × H) (mm) 1430×900×980
Bore*Stroke(mm) 108* 132
Compression ratio 17:01
Technical Specification of Yuchai YC6A280L-C20 Marine Engine
Aspiration Turbocharged
Governor Electric starter
Continuous power / speed (kW (Ps) / r / min) 206(280)/2500
Overload power / speed (kW (Ps) / r / min) 227(310)/2580
Engine Cooling System Water cooled
Performance Data of Yuchai YC6A280L-C20 Marine Engine
Fuel consumption at full load (g / kW ∙ h) ≤198
Oil consumption (g / kW • h) ≤0.8
Crankshaft rotation direction (facing the power output terminal) Anticlockwise
Adapter gear box HCQ138、120C etc.
certificate ZC、CCS、IMO
As optional of  Yuchai YC6A280L-C20 Marine Engine
Control Panel As optional
