Yuchai marine Enine

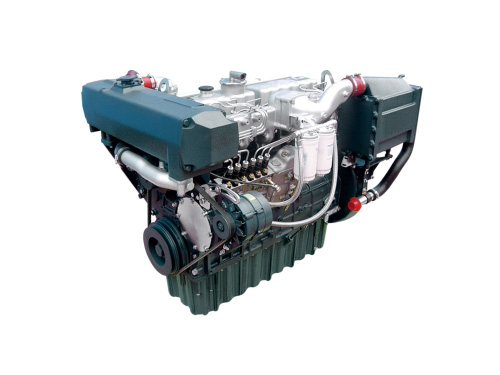

YUCHAI Marine Engine YC6108ZLCB spare parts

YUCHAI Marine Engine YC6108ZLCB spare parts
Product description: YUCHAI Marine Engine YC6108ZLCB spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC6108ZLCB spare parts

General Information of Yuchai  YC6108ZLCB     Marine Engine

Engine Model YC6108ZLCB

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 6-valve

Piston displacement (L) 7.252L

Net Weight 770kg

Dimensions (L × W × H) (mm) 1415×910×1548

Bore*Stroke(mm) 108* 132

Compression ratio 17:01

Technical Specification of Yuchai   YC6108ZLCB   Marine Engine

Aspiration Turbocharged

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 112(152)/1500

Overload power / speed (kW (Ps) / r / min) 123.2(170)/1548

Engine Cooling System Water cooled

Performance Data of Yuchai   YC6108ZLCB          Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤198

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box 120C、135、MB24 etc.

certificate ZC、CCS

As optional of Yuchai   YC6108ZLCB   Marine  Engine

Control Panel As optional
