Yuchai marine Enine

YUCHAI Marine Engine YC4D100Z-C20 spare parts

YUCHAI Marine Engine YC4D100Z-C20 spare parts

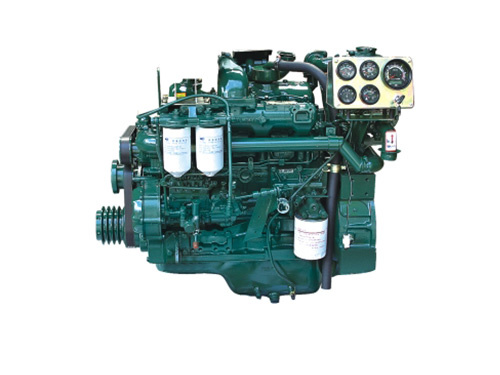

Product description: YUCHAI Marine Engine YC4D100Z-C20 spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC4D100Z-C20 spare parts

General Information of Yuchai   YC4D100Z-C20      Marine Engine

Engine Model YC4D100Z-C20

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 4-valve

Piston displacement (L) 4.214L

Net Weight 370kg

Dimensions (L × W × H) (mm) 986×730×948

Bore*Stroke(mm) 108* 115

Compression ratio 17:01

Technical Specification of Yuchai  YC4D100Z-C20   Marine Engine

Aspiration Booster

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 75(100)/2400

Overload power / speed (kW (Ps) / r / min) 82.5(110)/2478

Engine Cooling System Water cooled

Performance Data of Yuchai   YC4D100Z-C20         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤200

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box H35、MB142、40A、MB170、MBS170 etc.

As optional of Yuchai   YC4D100Z-C20 Marine  Engine

Control Panel As optional

PREVIOUS：YUCHAI Marine Engine YC4D120Z-C20 and spare p NEXT：YUCHAI Marine Engine YC4D75C and spare parts

Yuchai marine Enine

YUCHAI Marine Engine YC4D100Z-C20 spare parts

Inquiry

RELATED PRODUCTS

PRODUCT CATEGORIES

General Information of Yuchai YC4D100Z-C20 Marine Engine
Engine Model	YC4D100Z-C20
Configuration	Vertical,in-line,4-stroke， Direct injection
Number of valves per cylinder	4-valve
Piston displacement (L)	4.214L
Net Weight	370kg
Dimensions (L × W × H) (mm)	986×730×948
Bore*Stroke(mm)	108* 115
Compression ratio	17:01

Technical Specification of Yuchai YC4D100Z-C20 Marine Engine
Aspiration	Booster
Governor	Electric starter
Continuous power / speed (kW (Ps) / r / min)	75(100)/2400
Overload power / speed (kW (Ps) / r / min)	82.5(110)/2478
Engine Cooling System	Water cooled

Performance Data of Yuchai YC4D100Z-C20 Marine Engine
Fuel consumption at full load (g / kW ∙ h)	≤200
Oil consumption (g / kW • h)	≤0.8
Crankshaft rotation direction (facing the power output terminal)	Anticlockwise
Adapter gear box	H35、MB142、40A、MB170、MBS170 etc.
As optional of Yuchai YC4D100Z-C20 Marine Engine
Control Panel	As optional
