Chongqing Cummins Engine Co., Ltd(CCEC), Sino-US joint venture company , was established in October,1995, located lieshimu Shapingba District of Chongqing. The Chinese parent company is Chongqing Machinery & Electric Co., Ltd. The foreign parent company is the United States Cummins ( China ) Investment Co., Ltd. , the investment ratio is 50 % of each parts. Now the existing staff of CCEC is more than 1,400 people. The predecessor of CCEC is Chongqing automobile engine factory , began the design and manufacture of diesel engines from the 1950s.
Chongqing Cummins(CCEC), as the beginning of local production of Cummins diesel engine in China , is the largest heavy-duty Cummins engine and high-horsepower Cummins engine manufacturing plant in China . In 1981 , Cummins and former China National Heavy Duty Truck formally signed a license agreement to begin producing large horsepower Cummins diesel engine in Chongqing. After years of development, they continue to deepen bilateral cooperation . Chongqing Cummins(CCEC) has been the rapid growth of business and an important driving force for Cummins Inc in China.

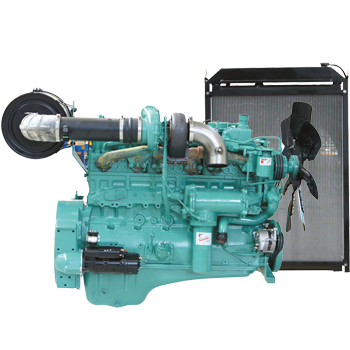

| Cummins NTA855-G7A Engine Spare Parts | ||||
| ITEM | PARTS NAME | PARTS NAME | QTY | P/N. |
| 1 | 空气滤清器 | CLEANER,AIR | 1 | 300958 |
| 2 | 水滤 | CORROSION RESISTOR | 1 | 4058965 |
| 3 | 燃油滤清器 | FILTER,FUEL | 2 | 3315843 |
| 4 | 机油滤清器 | CARTRIDGE,LUB | 1 | 3401544 |
| 5 | 冷却器芯 | CORE,COOLER | 1 | 3053393 |
| 6 | 转速传感器 | PICK UP,MAGNETIC | 1 | 3034572 |
| 7 | 节温器 | THERMOSTAT | 1 | 3076489-20 |
| 8 | 风扇皮带 | BELT,V RIBBED | 1 | 3040386 |
| 9 | 多槽皮带 | BELT,V RIBBED | 1 | 217638 |
| 10 | 增压器 | TURBOCHARGER | 1 | 3529035 |
| 11 | 止推片 | BEARING,THRUST | 4 | 3067568 |
| 12 | 连杆瓦 | BEARING,CONNECTING ROD | 6 | 214950-20 |
| 13 | 主轴瓦 | MAIN BEARING STD | 1 | 3801260-10 |
| 14 | 进气门 | VALVE,INTAKE | 12 | 135957-20 |
| 15 | 排气门 | VALVE,EXHAUST | 12 | 145701-20 |
| 16 | 进气门座圈 | INSERT,INTAKE VALVE | 12 | 3017759-20 |
| 17 | 排气门座圈 | INSERT,VALVE EXHAUST | 12 | 200354-20 |
| 18 | 气门弹簧上座 | RETAINER, VALVE SPRING | 24 | 3036966-20 |
| 19 | 气门弹簧下座 | GUIDE, VALVE SPRING | 24 | 3047395 |
| 20 | 气门导管 | GUIDE,VALVE STEM | 24 | 3006456-20 |
| 21 | 气门弹簧 | SPRING,VALVE | 24 | 3081212 |
| 22 | 气门锁夹 | COLLET,VALVE | 24 | 127554 |
| 23 | 喷油器 | INJECTOR | 6 | 4914328 |
| 24 | 喷油推杆 | ROD,PUSH | 6 | 3046430 |
| 25 | 推杆 | ROD,PUSH | 6 | 3046420 |
| 26 | 缸套 | LINER KIT,CYLINDER | 6 | 3801826-20 |
| 27 | 气缸垫 | GASKET,CYLINDER HEAD | 6 | 4058790 |
| 28 | 上修包 | SET,UPPER ENGINE GSK | 1 | 4915302-10 |
| 29 | 下修包 | SET,LOWER ENGINE GSK | 1 | 4915303-10 |
| 30 | 连杆总成 | CONNECTING ROD ASSY | 6 | 3013930 |
| 31 | 连杆衬套 | BUSHING | 1 | 187420-20 |
| 32 | 凸轮轴衬套 | BUSHING | 1 | 3801106 |
| 33 | 卡环 | RING,RETAINIGN | 6 | 175755-20 |
| 34 | 活塞 | PISTON,ENGINE | 6 | 4913782 |
| 35 | 活塞销 | PIN,PISTON | 6 | 191970-20 |
| 36 | 活塞环 | SET,PISTON RING | 6 | 3103157/58/59 |
| 37 | 活塞冷却喷嘴 | NOZZLE,PISTON COOLING | 6 | 3013591-20 |
| 38 | 凸轮轴 | CAMSHAFT | 1 | 3090874 |
| 39 | 机油泵 | PUMP,LUBRICATING OIL | 1 | 3821579 |
| 40 | 启动马达 | MOTOR,STARTING | 1 | 3021036 |
| 41 | 电磁开关 | SWITCH,MAGNETIC | 1 | 3050692 |
| 42 | 发电机 | ALTERNATOR | 1 | 3016627 |
| 43 | 水泵 | PUMP,WATER | 1 | 3051408 |
| 44 | 水泵叶轮 | IMPELLER,WATER PUMP | 1 | 3000888 |
| 45 | 气缸体 | BLOCK,CYLINDER | 1 | 3081281 |
| 46 | 电子调速板 | CONTROL,GOVERNOR | 1 | 3044196 |
| 47 | 曲轴 | CRANKSHAFT,ENGINE | 1 | 3608833 |
| 48 | 风扇 | ENGINE FAN | 1 | 4913771 |
| 49 | 气缸套总成 | CYLINDER HEAD ASSEMBLY | 6 | 3411805 |
| 50 | STC 机油阀 | STC VALVE，OIL CONTROL | 1 | 3076339 |
