Chongqing Cummins Engine Co., Ltd(CCEC), Sino-US joint venture company , was established in October,1995, located lieshimu Shapingba District of Chongqing. The Chinese parent company is Chongqing Machinery & Electric Co., Ltd. The foreign parent company is the United States Cummins ( China ) Investment Co., Ltd. , the investment ratio is 50 % of each parts. Now the existing staff of CCEC is more than 1,400 people. The predecessor of CCEC is Chongqing automobile engine factory , began the design and manufacture of diesel engines from the 1950s.
Chongqing Cummins(CCEC), as the beginning of local production of Cummins diesel engine in China , is the largest heavy-duty Cummins engine and high-horsepower Cummins engine manufacturing plant in China . In 1981 , Cummins and former China National Heavy Duty Truck formally signed a license agreement to begin producing large horsepower Cummins diesel engine in Chongqing. After years of development, they continue to deepen bilateral cooperation . Chongqing Cummins(CCEC) has been the rapid growth of business and an important driving force for Cummins Inc in China.

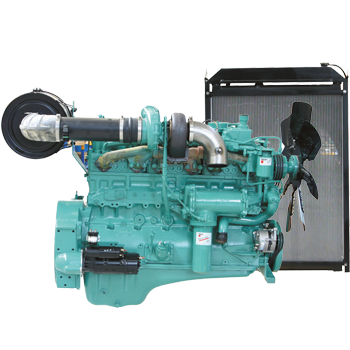

| CCEC Cummins NTA855 Engine Parts | |||||
| No. | Product name | Part No. | Unit | Qty. | Origin |
| 1 | Piston | 3017348 | pc | 6 | CCEC |
| 2 | Piston/Marine | 3017349 | pc | 6 | CCEC |
| 3 | Piston/G4 | 3048808 | pc | 6 | CCEC |
| 4 | Ring, Piston | 3803471 | set | 6 | CCEC |
| 5 | Pin, Piston | 191970 | pc | 6 | CCEC |
| 6 | Ping,Retaining | 175755 | pc | 12 | CCEC |
| 7 | Bearing Main | 3801260 | set | 1 | CCEC |
| 8 | Bearing, Con Rod | 214950 | set | 1 | CCEC |
| 9 | Liner, Cylinder | 3055099 | pc | 6 | CCEC |
| 10 | Seal, Liner Cylinder | AR51477 | set | 6 | CCEC |
| 11 | Rod, Engine Connecting | 3418500 | pc | 6 | CCEC |
| 12 | Bushing | 187420 | pc | 6 | CCEC |
| 13 | Bolt, Connecting Rod | 219153 | pc | 12 | CCEC |
| 14 | Nozzle, Piston Cooling | 3013591 | pc | 6 | CCEC |
| 15 | Support, Camshaft Thrust | 3067568 | pc | 4 | CCEC |
| 16 | Cylinder Head | 3418529 | pc | 3 | CCEC |
| 17 | Screw, Cylinder Head Cap | 3013623 | pc | 3 | CCEC |
| 18 | Cylinder Head/Circle | 3418678 | pc | 3 | CCEC |
| 19 | Head, Cylinder | 3007716 | pc | 3 | CCEC |
| 20 | Camshaft | 3042568 | pc | 1 | CCEC |
| 21 | Camshaft | 3025517 | pc | 1 | CCEC |
| 22 | Camshaft | 3025518 | pc | 1 | CCEC |
| 23 | Collet, Valve | 127554 | pc | 48 | CCEC |
| 24 | Valve, Intake | 135957 | pc | 12 | CCEC |
| 25 | Valve, Exhaust | 145701 | pc | 12 | CCEC |
| 26 | Valve, Exhaust | 3040830 | pc | 12 | CCEC |
| 27 | Guide, Valve Spring | 170296 | pc | 24 | CCEC |
| 28 | Guide, Valve Spring | 3042745 | pc | 24 | CCEC |
| 29 | Guide, Valve Crosshead | 123558 | pc | 12 | CCEC |
| 30 | Exhaust, Valve | 127930 | pc | 12 | CCEC |
| 31 | Insert, Valve | 200354 | pc | 12 | CCEC |
| 32 | Guide, Valve Stem | 3006456 | pc | 24 | CCEC |
| 33 | Crosshead, Valve | 3028293 | pc | 12 | CCEC |
| 34 | Crosshead, Valve | 3028293 | pc | 12 | CCEC |
| 35 | Connection, Fuel Crosscover | 147100 | pc | 2 | CCEC |
| 36 | Rod, Push | 3046420 | pc | 12 | CCEC |
| 37 | Rod, Push | 3046430 | pc | 6 | CCEC |
| 38 | Valve, Bypass | 3023512 | pc | 1 | CCEC |
| 39 | Gasket Pan, Oil | 3032861 | pc | 1 | CCEC |
| 40 | Lub Oil Pump | AR10172 | pc | 1 | CCEC |
| 41 | Lub Oil Pump | 3821579 | pc | 1 | CCEC |
| 42 | Lub Oil Pump | AR9835 | pc | 1 | CCEC |
| 43 | Water Pump | 3022474 | pc | 1 | CCEC |
| 44 | Water Pump | 3801708 | pc | 1 | CCEC |
| 45 | Kit, Water Pump Repair(Major) | 3801712 | set | 1 | CCEC |
| 46 | Tensioner, Belt | AR45189 | set | 1 | CCEC |
| 47 | Belt, V Ribbed | 217638 | pc | 1 | CCEC |
| 48 | Core, Aftercooler | 3028997 | pc | 1 | CCEC |
| 49 | Core, Aftercooler | 3028997 | pc | 1 | CCEC |
| 50 | Exhaust, Manifold | 3419130 | pc | 1 | CCEC |
| 51 | Turbocharger | 3529032 | pc | 1 | HOLSET |
| 52 | Turbocharger | 3529040 | pc | 1 | HOLSET |
| 53 | Turbocharger NTA855M | 3529040 | 1 | HOLSET | |
| 54 | Turbocharger NTA855M | 3529032 |
