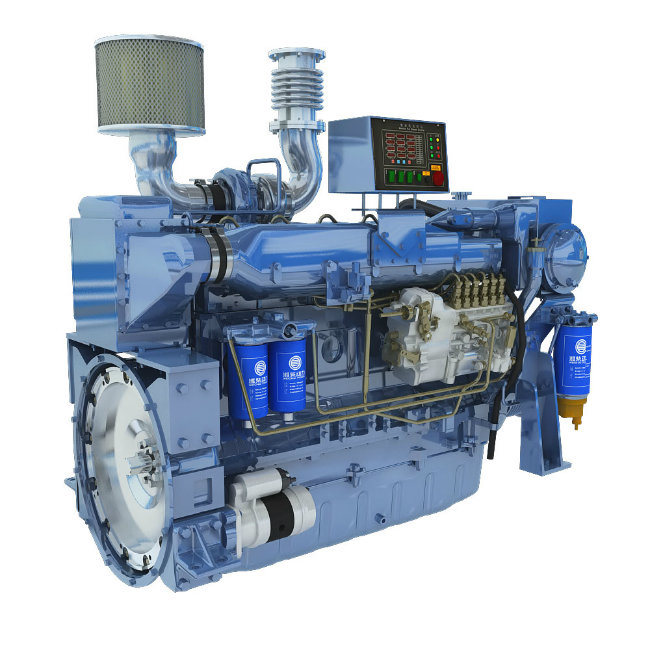

Weichai Marine Propulsion Engine WD615.46C-1 and spare parts
| General Information of Weichai WD615.46C-1 Marine Propulsion Engine | |
| Engine Model | WD615.46C-1 |
| Engine Type | 6 Cylinders in Line |
| Displacement | 9.726 L |
| Bore*Stroke(mm) | 126 * 130 |
| Net Weight (with flywleel & alternator) | 1056Kg |
| Overall Diemension(L*W*H) | 1440mm*774mm*1400mm |
| Rotation direction of crankshaft | Clockwise |
| Start mode | Electric start |
| Technical Specification of Weichai WD615.46C-1 Marine Propulsion Engine | |
| Marine Certification | CCS |
| Aspiration | Turbocharged and intercooled |
| Governor | Mechanical |
| Electrical System(Starter Motor/Alternator) | 12V/24V |
| Engine Cooling System | Sea and fresh water duel-circulation cooling system |
| Performance Data of Weichai WD615.46C-1 Marine Propulsion Engine | |
| Rated Power/Speed | 240kW/2100rpm |
| Min. fuel oil consumption | ≤220g/Kw.h |
| Lub oil and fuel consumption ratio | ≤0.8% |
| As optional of Weichai WD615.61C-1 Marine Propulsion Engine | |
| Control Panel | As optional |
| Marine Gearbox | As optional of Advance or Fada |
