Chongqing Cummins Engine Co., Ltd(CCEC), Sino-US joint venture company , was established in October,1995, located lieshimu Shapingba District of Chongqing. The Chinese parent company is Chongqing Machinery & Electric Co., Ltd. The foreign parent company is the United States Cummins ( China ) Investment Co., Ltd. , the investment ratio is 50 % of each parts. Now the existing staff of CCEC is more than 1,400 people. The predecessor of CCEC is Chongqing automobile engine factory , began the design and manufacture of diesel engines from the 1950s.
Chongqing Cummins(CCEC), as the beginning of local production of Cummins diesel engine in China , is the largest heavy-duty Cummins engine and high-horsepower Cummins engine manufacturing plant in China . In 1981 , Cummins and former China National Heavy Duty Truck formally signed a license agreement to begin producing large horsepower Cummins diesel engine in Chongqing. After years of development, they continue to deepen bilateral cooperation . Chongqing Cummins(CCEC) has been the rapid growth of business and an important driving force for Cummins Inc in China.

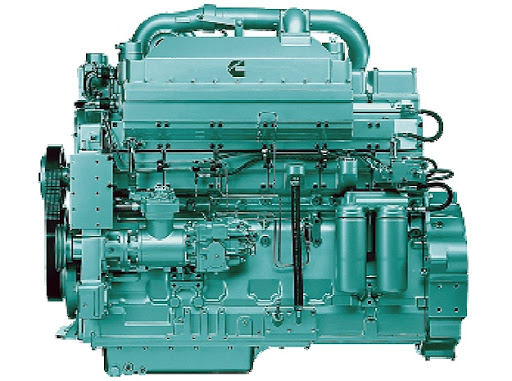

Cummins KTAA19-G6A Engine Spare Parts Catalog | ||||
SEQ | PARTS NAME | PARTS NAME | Q'TY | P/N. |
1 | 电磁开关 | SWITCH,MAGNETIC | 1 | 3050692 |
2 | 空气滤清器 | CLEANER,AIR | 3 | AF872M (fleetguard) |
3 | 水滤 | CORROSION RESISTOR | 3 | WF2076 (Fleetguard) |
4 | 燃油滤清器 | FILTER,FUEL | 24 | FS1212 |
5 | 机油滤清器 | CARTRIDGE,LUB | 12 | LF670 |
6 | 机油旁通器 | ELEMENT,LUBOIL FILTER | 12 | 3889311 |
7 | 冷却器芯 | CORE,COOLER | 1 | 3331668 |
8 | 冷却器芯衬垫 | GASKET,COOLER ELEMENT | 4 | 206973 |
9 | 机油冷却器壳衬垫 | GASKET,LUB OIL | 1 | 3065790 |
10 | 机油压力传感器 | OIL PRESSURE TRANS DUCER | 1 | 3015237 |
11 | 转速传感器 | PICK UP,MAGNETIC | 1 | 3034572 |
12 | 水温传感器 | TEMP TRANSDUCER | 2 | 3015238 |
13 | 节温器 | THERMOSTAT | 1 | 3076489-20 |
14 | 风扇皮带 | BELT,V RIBBED | 3 | 5412996 |
15 | 多槽皮带 | BELT,V RIBBED | 6 | 206996 |
16 | 增压器 | TURBOCHARGER | 1 | 3594118 |
17 | 增压器修理包 | TURBOCHARGER,KIT | 1 | 3545647 |
18 | 止推片 | BEARING,THRUST | 4 | 205112 |
19 | 连杆瓦 | BEARING,CONNECTING ROD | 2 | 205840-20 |
20 | 主轴瓦 | SHELL,MAIN BEARING STD | 1 | AR12270-10 |
21 | 进气门 | VALVE,INTAKE | 12 | 4986317-20 |
22 | 排气门 | VALVE,EXHAUST | 12 | 3088389-20 |
23 | 进气门座圈 | INSERT,INTAKE VALVE | 12 | 3086193-20 |
24 | 排气门座圈 | INSERT,VALVE EXHAUST | 12 | 3086192-20 |
25 | 气门弹簧上座 | RETAINER, VALVE SPRING | 8 | 205094-20 |
26 | 气门弹簧下座 | GUIDE, VALVE SPRING | 8 | 3640315-20 |
27 | 气门导管 | GUIDE,VALVE STEM | 12 | 3202210-20 |
28 | 气门弹簧 | SPRING,VALVE | 12 | 3633840 |
29 | 气门锁夹 | COLLET,VALVE | 16 | 205091 |
30 | 喷油器 | INJECTOR | 6 | 3095773-20 |
31 | 喷油推杆 | ROD,PUSH | 6 | 3017961 |
32 | 推杆 | ROD,PUSH | 6 | 205492 |
33 | 矩型圈 | SEAL,DEVICE | 6 | 205115 |
34 | 缸套 | LINER,CYLINDER | 6 | 4009220 |
35 | 缸套密封 | SEAL,DREVICE | 6 | 3081489 |
36 | SEAL,O RING | 12 | 3014668 | |
37 | SEAL,O RING | 12 | 3011076 | |
38 | 气缸垫 | GASKET,CYLINDER HEAD | 6 | 3634664-20 |
39 | 上修包 | SET,UPPER ENGINE GSK | 1 | 4295803-10 |
40 | 下修包 | SET,LOWER ENGINE GSK | 1 | 4295804-10 |
41 | 连杆衬套 | BUSHING | 6 | 3043909-20 |
42 | 凸轮轴衬套 | BUSHING | 6 | 3002834 |
43 | 卡环 | RING,RETAINIGN | 6 | 205269 |
44 | 活塞 | PISTON,ENGINE | 6 | 4913795-20 |
45 | 活塞销 | PIN,PISTON | 6 | 4095009 |
46 | 活塞环 | SET,PISTON RING | 6 | 4089500 |
47 | 活塞冷却喷嘴 | NOZZLE,PISTON COOLING | 6 | 3007517 |
48 | O型密封圈 | SEAL,D RING | 12 | 3011076 |
49 | O型密封圈 | SEAL,D RING | 12 | 3014668 |
50 | 凸轮轴 | CAMSHAFT | 1 | 3066877 |
51 | 机油泵 | PUMP,LUBRICATING OIL | 1 | 3047549 |
52 | 启动马达 | MOTOR,STARTING | 1 | 3636821 |
53 | 发电机 | ALTERNATOR | 1 | 3016627 |
54 | 水泵 | PUMP,WATER TLA | 1 | 3098964 |
55 | 燃油泵 | FUEL PUMP | 1 | 4915474-20 |
56 | 气缸体 | BLOCK,CYLINDER | 1 | 3088303 |
57 | 电子调速板 | CONTROL,GOVERNOR | 1 | 4914091 |
58 | 曲轴 | CRANKSHAFT,ENGINE | 1 | 3347569 |
59 | 风扇 | ENGINE FAN | 1 | 4913821 |
60 | 前油封 | FRONT OIL SEAL | 1 | 3016787 |
61 | 后油封 | REAR OIL SEAL | 1 | AR10591 |
