Cummins Marine Engine

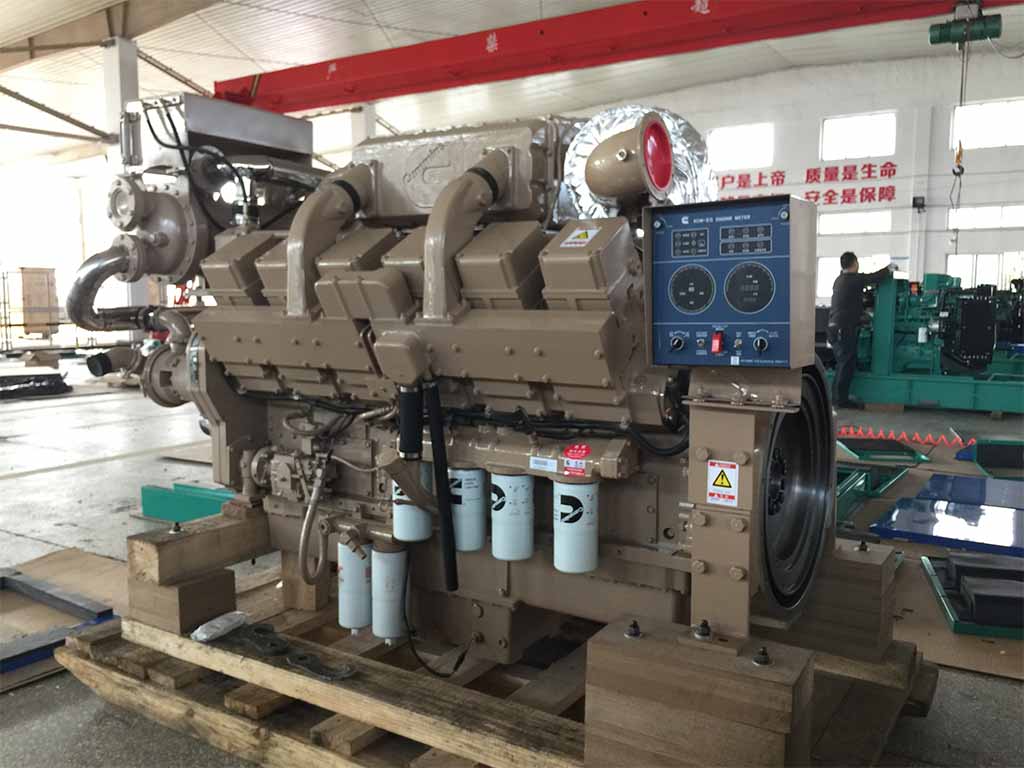

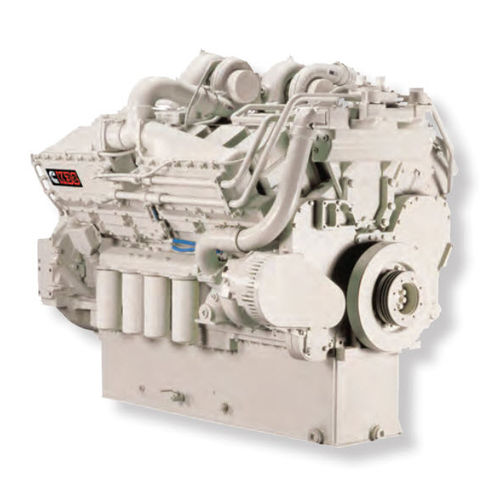

  • KTA38-M1050 Cummins Marine Engine and Spare Parts
  • KTA38-M1050 Cummins Marine Engine and Spare Parts
KTA38-M1050 Cummins Marine Engine and Spare PartsKTA38-M1050 Cummins Marine Engine and Spare Parts

KTA38-M1050 Cummins Marine Engine and Spare Parts

  • KTA38-M1050 Cummins Marine Engine and Spare Parts
  • Product description: KTA38-M1050 Cummins Marine Engine and Spare Parts
  • INQUIRY   EMAIL

Chongqing Cummins Engine Co., Ltd. (hereinafter referred to as “Chongqing Cummins” or “CCEC“) was established in 1995, located in Chongqing City. It’s a modern manufacturer 50:50 Joint Venture shared by Chongqing Machinery CO. LTD and Cummins USA. The company mainly produces N, K, M series Cummins construction engine, diesel pump engine, marine engine, generators engine, KTA38-M1050 marine engine is one of the engine family members, the specifications of Cummins KTA38-M1050 marine engine as follows:

KTA38-M1050 Cummins Marine Engine and Spare Parts
Engine Model KTA38-M1050
Rated Power 783kW
Rated Speed 1600RPM
Engine Type 12 Cylinders, V Type
Bore*Stroke(mm) 159mm*159mm
Displacement 37.8 L
Compression Ratio 13.9:1
Fuel Consumption 189 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Direct Injection Pump
Governor Method Mechanical Governor
Packing Weight 4700KG
Dimension 2700mm*1550mm*2200mm

Remarks:
(1) If you need the KTA38-M1050 marine engine power pack with the marine gearbox, please further contact our sales.
(2) We can provide the KTA38-M1050 complete marine engine, as well as the KTA38-M1050 genuine Cummins engine parts.
(3) Cummmins KT38 Series Marine Engine Model: KTA38-M750, KT38-M780, KTA38-M800, KTA38-M850, KTA38-M900, KTA38-M1050, KTA38-M1200, KTA38-M1300, KTA38-M1350.
