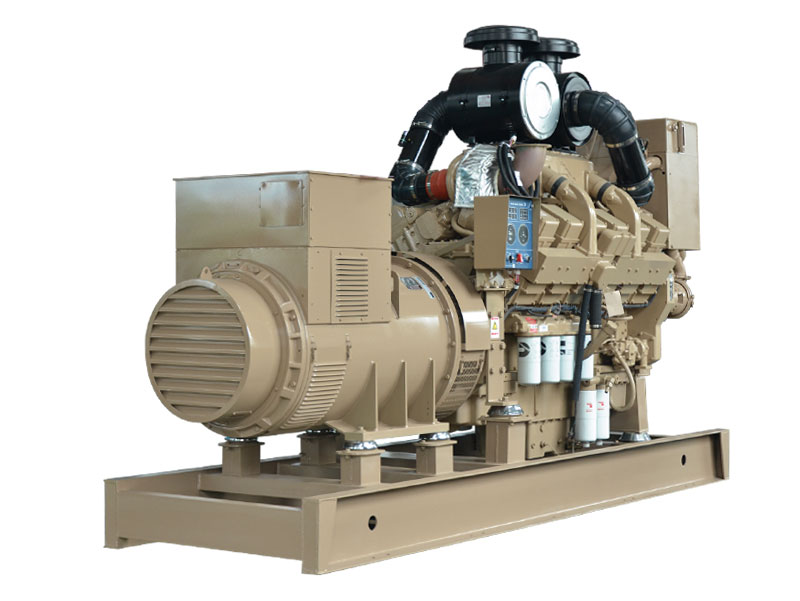

Cummins 630kw Marine Diesel Generator Set 50HZ,3P,4W,400/230V. 1500r.p.m
| MODEL | CCFJ630 | |
| Prime Power (50Hz) | 630KW | 787.5 KVA |
| Standby Power (50Hz) | 693KW | 866.25 KVA |
| Voltage(V) | Hz | Phase |
P.F
(cosC) |
Prime Amps (A) |
Prime Ratings
(KW/KVA) |
||
| 415 | 240 | 50 | 3 | 0.8 | 1096 | 630 | 787.5 |
| 400 | 230 | 50 | 3 | 0.8 | 1137 | 630 | 787.5 |
| 380 | 220 | 50 | 3 | 0.8 | 1196 | 630 | 787.5 |
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528) ; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
● GB/T13032-1991, ISO9001:2008 and CE Quality Control System.
● As to Classification Society, PRIME POWER supply CCS as standard; ABS,BV,BKI,NK or LR is optional.
Manufacturer / Model： Cummins K38-DM,4-cycle,Water Cooled.
Air Intake System： Turbo, Water/Air cooling
Cylinder Arrangement： “V” in line;12 Cylinder
Displacement： 38L
Bore and Stroke： 159*159（mm）
Fuel Consumption at 100% Load ： 215 g/kw.h
Rated RPM： 1500rpm
Max. Standby Power：746KW/1015HP
Governor Type： Electronic Speed Control System
Emission Standard：IMO TIER II, EIAPP Certificate
Alternator Model LVM634D
Power Capacity 788kVa
Efficiency 95.8%
Type Brushless, Self-excited and AVR
Power factor 0.8
Insulation Grade H
Protection Grade IP23(IP44 is optional)
