Dongfeng Cummins Engine Co., Ltd., which is a 50-50 joint venture between Cummins USA and Dongfeng group, it is located in Xiangyang City, Hubei Province. This Cummins China factory is mainly manufacturing the small power diesel engine for automobile, construction, marine and genset.
Dongfeng Cummins Engine Co., Ltd , a national high-tech enterprises, its main engine model is Cummins 4B, 6B, C8.3, L8.9 series, these model are mechanical engine; Dongfeng Cummins also manufacturing ISDe, ISLe, ISZ series, which are electronic control engine; What is more, Dongfeng Cummins also manufacturing B, C, L and Z series natural gas engines, including B3.9, B4.5, B5.9, B6.7, C8.3, L8.9, Z13, power range from 125HP to 545HP.
| Cummins DCEC 6CTA8.3-G2 Spare Part Dongfeng Cummins engine parts China | ||||
| No. | Description | Description | Spare parts No. | QTY FOR ONE ENGINE |
| 1 | 机油滤清器 | CARTRIDGE,LUB | C3401544 | 15 |
| 2 | 燃油滤清器 | FILTER,FUEL | C3931063 | 15 |
| 3 | 油水分离器 | FUEL-WATER SEPARATOR | C3930942 | 15 |
| 4 | 水滤 | RESISTOR,CORROTION | C4058964 | 15 |
| 5 | 气阀室罩密封垫 | GASKET,VALVE COVER | C3905449 | 90 |
| 6 | 皮带 | BELT,V RIBBED | C3288475 | 15 |
| 7 | 空滤芯 | CLEANER，AIR | KW1638 | 15 |
| 9 | 曲轴止推瓦 | BEARING,CRANKSHAFT THRUS | C3944163 | 1 |
| 10 | 曲轴主轴上瓦 | BEARING,MAIN | C3944158 | 6 |
| 11 | 曲轴主轴下瓦 | BEARING,MAIN | C3944153 | 7 |
| 12 | 连杆瓦 | BEARING,CONNECTING ROD | C3950661 | 12 |
| 13 | 油嘴总成 | INJECTOR | C4948364 | 6 |
| 16 | 调温器 | THERMOSTAT | C5274887 | 1 |
| 18 | 机油压力传感器 | SENSOR,OIL PRESSURE | C3968300 | 1 |
| 19 | 水温传感器 | SENSOR,TEMPERATURE | C3979176 | 1 |
| 20 | 转速传感器总成 | SENSOR,SPEED | C3971994 | 1 |
| 22 | 进气阀 | VALVE,INTAKE | C3924492 | 6 |
| 23 | 排气阀 | VALVE,EXHAUST | C3921444 | 6 |
| 25 | 输油泵密封垫 | GASKET,COVER | C3939258 | 1 |
| 26 | 调温器座密封垫 | GASKET,THM HOUSING COVER | C3914310 | 1 |
| 27 | 起动机 | MOTOR,STARTING | C3415537 | 1 |
| 28 | 发电机 | ALTERNATOR | C3415691 | 1 |
| 29 | 启动断电器 | MAGNETIC SWITCH | 3916302 | 1 |
| 30 | 水泵 | PUMP,WATER | C3415366 | 1 |
| 31 | 水泵密封圈 | WATER PUMP SEAL | C3902089 | 1 |
| 32 | 机油冷却器芯 | CORE,COOLER | C3974815 | 1 |
| 33 | 机油冷却器芯垫 | GASKET,OIL COOLER CORE | C3918174 | 1 |
| 34 | 机油冷却器座垫 | OIL COOLER WASHER,SEALING | C3929011 | 1 |
| 35 | 气缸垫 | GASKET,CYLINDER HEAD | C3415501 | 1 |

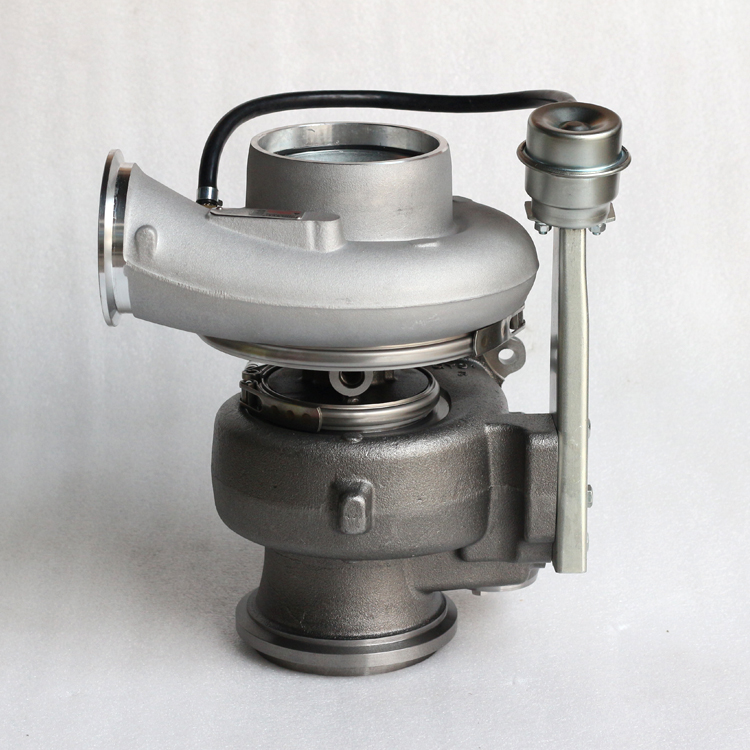

| 37 | 旁通增压器 | TURBOCHARGER | C4050236 | 1 |
| 38 | 油泵 | PUMP,FUEL INJECTION | C3972878 | 1 |
| 39 | 活塞 | PISTON, ENGINE | C3923537 | 6 |
| 40 | 活塞环 | PISTON RING SET | 3802429 | 6 |
| 41 | 活塞销 | PIN,PISTON | C3934046 | 12 |
| 42 | 活塞销卡簧 | RING,RETAINING | C3920692 | 12 |
| 43 | 缸套及密封圈 | LINER，CYLINDER | C3948095 | 6 |
| 44 | 连杆 | ROD,ENGINE CONNECTING | C3901383 | 2 |
| 45 | 推杆 | ROD,PUSH | C3905194 | 8 |
| 46 | 挺杆体 | TAPPET,VALVE | C3931623 | 8 |
